01-20-2022 04:44 PM
I have new Gen 3 Learning Nest. My furnace is a 2 wire system - W and Rh. I installed it and it worked for 1 day. Then it did not read the Rh wire. Put the old thermostat back on, it worked fine. I stripped both wires for a better contact but it still doesn't read the Rh wire. Voltage meter reads 24 volts when connected to Nest, I can hear the furnace motor power up but it doesn't kick in. So I'm baffled. Any help is appreciated.
01-27-2022 07:58 PM
Hi Wisky,
Thanks for posting a detailed description of your concern and sorry for the delayed response. I want to dig deeper into this.
A few questions — before installing your Nest Learning thermostat, did you check with our online Compatibility Checker if your system is compatible? If yes, are you getting a specific message or a code on your thermostat's display or Nest app? Also, could you provide a photo of the wires on the base of your thermostat so I can have it reviewed?
Best,
Melba
01-29-2022 12:56 PM
Hi Melba,

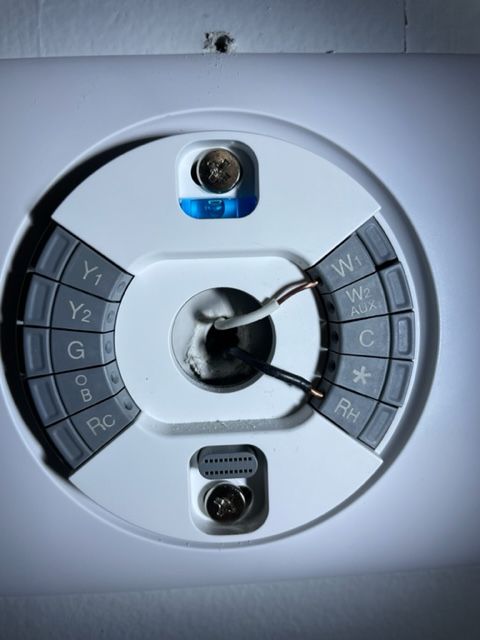

Yes I checked with compatibility before I purchased the Gen 3. It is supposed to work with a 2 wire system with "power stealing" as opposed to a C wire. Since I posted, the Nest is now reading the power wire but it is not recharging. So I suppose it is not stealing any power to recharge. I investigated the furnace connection and found that my particular furnace runs the thermostat via relays, so there is no "motherboard" that is labelled. I think my only option now is to have the furnace reconfigured to allow a hard C wire. I'll post a pic but it's a very simple hookup.
