Need Help Set Up the nest! Wires!

[Briyun]

Hi everyone,

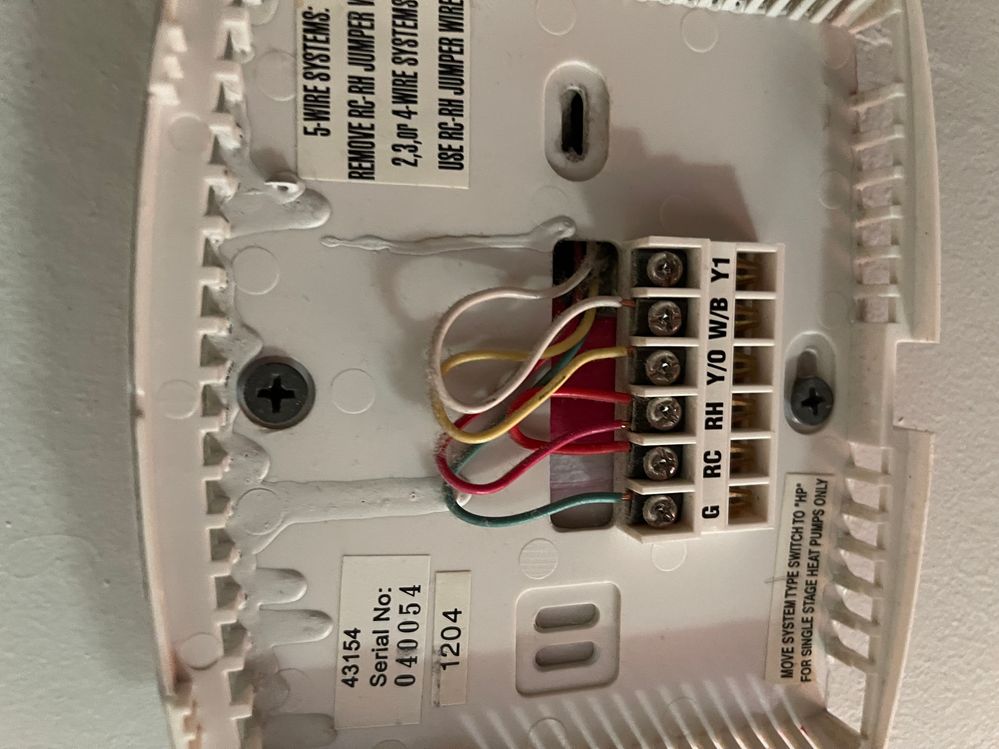

I'm looking to upgrade my thermostat from something from 2000 to the nest. Can someone help me determine which wires go to which wires???

[EdwardT]

Hi Briyun,

Thanks for reaching out. If you have conventional heating and cooling, you could follow the wiring below:

• Yellow wire to Y1
• Green wire to G
• Red wire to RC or RH
• White wire to W1

Let us know how it goes.

Thanks,

Edward

[EdwardT]

Hi Briyun,

It's me again. I wanted to check back in to see if you have other questions and concerns. Feel free to let me know if you do.

Thanks,

Edward

[Briyun]

Hi Edward!

Thank you so much! My question is what is the difference between the RC and RH?

[EdwardT]

Hi Briyun,

Thanks for the response. The 2 R wires are for systems with dual transformers. We use the RC for the power wire of the cooling, and the RH terminal for the heating.

Thanks,

Edward

[MelbaDT]

Hey there,

Checking back in should you still have some questions here.

Best,

Melba

[MelbaDT]

Hi,

We haven't heard from you in a while so we'll be locking this thread if there is no update within the day. If you have any new issues, updates or just a discussion topic, feel free to start a new thread in the Community.

Best,

Melba
