Nest compatibility

Mtollerson
Community Member

Hello, I'm unsure if my gas heater is compatible with Nest, please confirm from pictures below:

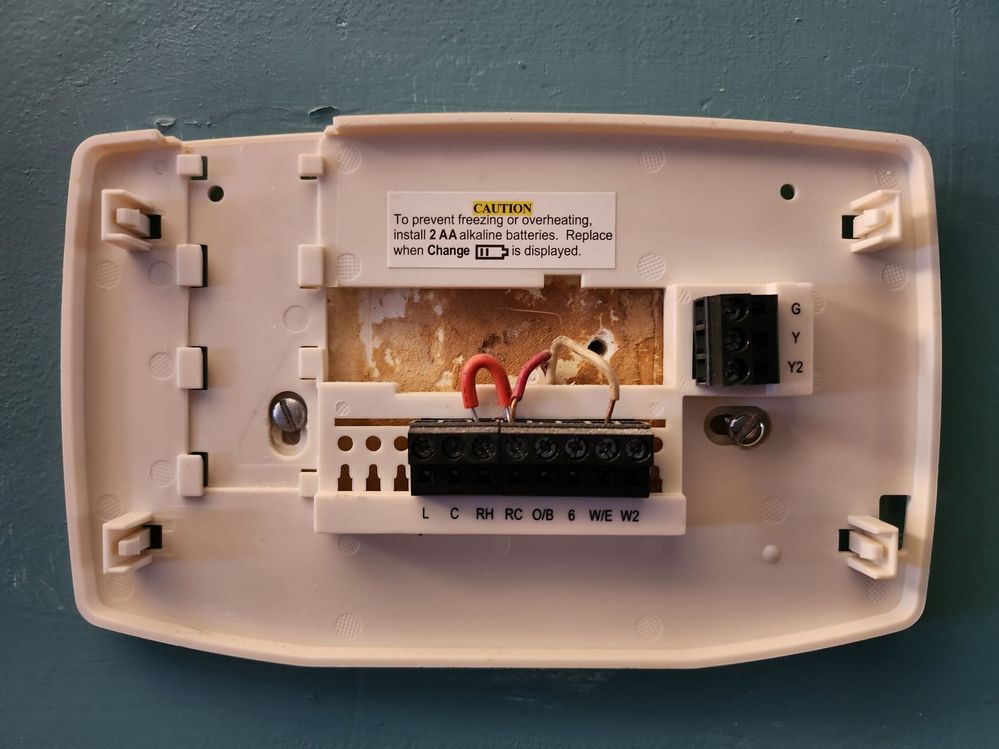

Thermostat wiringThermostat wiring



Back side of ThermostatBack side of Thermostat



7 REPLIES 7

David_K
Platinum Product Expert
Platinum Product Expert

Do you have an older gas furnace built into the wall or the floor? If yes, then you probably have a millivolt heating system, which isn't compatible. If no, then you're most likely good to use a Nest Learning Thermostat or Nest Thermostat E (Europe). This is based on the fact I can see you have Rh and Rc wires, with a jumper wire from Rh to Rc. You also have a W/E wire but don't have an O/B wire connected, indicating that you do not have a heat pump. As such, your W/E wire is simply your heat wire and it can be connected to W on a Nest thermostat. Only other thing on wires is you don't appear to have a common "C" wire, which in most cases isn't an issue, but mentioning it here for completeness. More details on that here.

Markjosephp
Community Specialist
Community Specialist

Hello folks,



I wanted to ensure that everything was covered here.



Thanks for helping here, @David_K.



@Mtollerson, I hope you've got the answer you're looking for. You can also check your system’s compatibility before purchasing a Nest Thermostat with our online Compatibility Checker. If you're still in need of assistance, feel free to let us know.



Regards,

Mark

Hi, I guess I got my answer but I don't fully understand everything. I went ahead and tried installing the Nest and it works so I guess everything is fine. Thanks

Markjosephp
Community Specialist
Community Specialist

Hello Mtollerson,



Thanks for the update, and I'm glad to hear that your system is working with the Nest Thermostat. I'd love to know more about this and make sure it'll work smoothly.



Could you please tell us what type of Nest Thermostat you installed? Here's a guide to determining which you have.



Best,

Mark

Hi there,



I wanted to see if you still needed help. Please let us know if you have any other questions or concerns.

Thanks,

Mark

Mtollerson
Community Member

Hello, no I don't need anymore assistance

Markjosephp
Community Specialist
Community Specialist

Hi Mtollerson,



Thanks for letting me know. It looks like we have come to a solution, so I'm going to lock this thread in 24 hours. If you have any other concerns or questions, please feel free to create a new thread.
