06-03-2023 05:42 AM

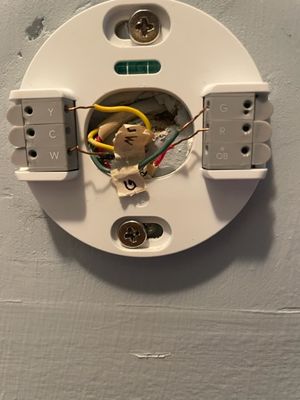

My thermostat stops cooling after a minute or so, the it starts a count down “Starts in x:x min”, about 3min and starts again for a minute. The heating works fine. Image of the wires is attached
06-03-2023 07:07 AM
One thing is for sure, you need to trim all those bare copper wires. The wires should be straight and inserted fully. Now the problem are experiencing is most typically associated with a low battery voltage.
AC Cooling Wizard
06-03-2023 07:15 AM
Thank you! I moved the green wire from G to C and it appears to work now. The green wire was connected to G at the furnace.
06-03-2023 07:16 AM
Sorry I meant to say the green wire was connected to C at the furnace
06-03-2023 07:16 AM
At the furnace you need to move the G wire to the C terminal if you are going to use that wire for Common and not Fan.
AC Cooling Wizard
06-05-2023 11:47 AM
Hi there,
Thanks for reaching out. I just want to check if you managed to see the response above. Please let us know if you still have questions or concerns, as we'll be willing to assist you further.
I appreciate your help, @CoolingWizard.
Best,
Jenelyn
06-05-2023 11:51 AM
I saw the response. Thanks!
