Wiring compatibility with Bosch Unit

WestMichigan
Community Member

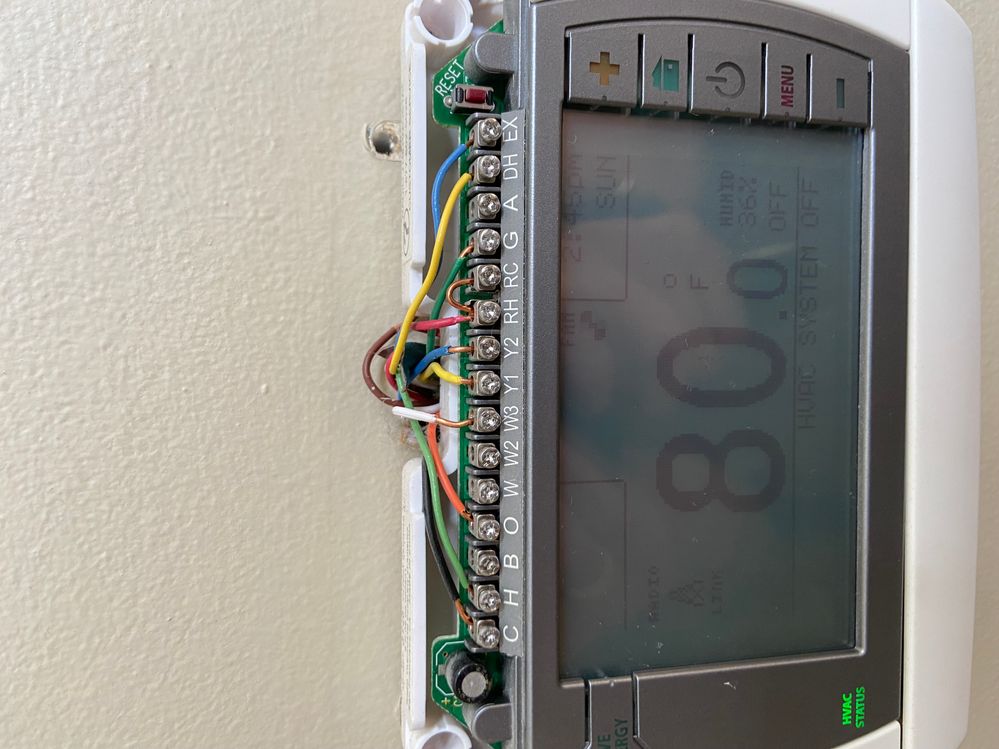

This is for a Bosch 2 stage heat pump application.  The thermostat below shows the current wiring.  Assuming 2 cooling states, 2 heat stages, and auxiliary heat how would these wire translate?  In particular the white W3 wire.  I think the others are pretty self explanatory.  Ignore the H, DH, and EX contacts since they were never used.  If the H line could be used that would be a plus, but it isn't necessary.


From the Bosch manual




0 REPLIES 0
