Google Nest Thermostat Instal

[Dp0490]

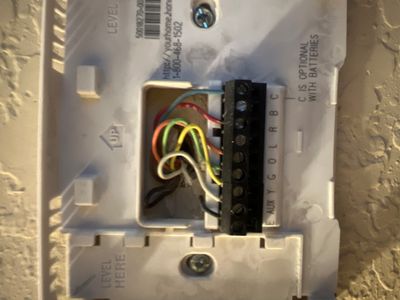

 can anyone assist me with where my E and Aux wires are supposed to go?

[Patrick_Caezza]

Your current system will only work with the Nest 3rd Gen Learning Thermostat.

Try this.

Balck - E to * (set as Emergency heat)

White - Aux to W2 (set as Aux heat)

Yellow - Y to Y1

Green - G to G

Orange - O to OB

Red - R to Rc

Blue - C to C

[Markjosephp]

Hello folks,

I wanted to ensure that everything was covered here.

Thanks for the wiring guide, @Patrick_Caezza.

@Dp0490, I hope you've got the answer you're looking for. Please follow the wiring configuration shared by Patrick_Caeza for your Nest Thermostat's configuration. Also, let us know if you have any other questions or concerns.

Regards,

Mark

[Markjosephp]

Hi Dp0490,

I wanted to see if you still needed help. Please let us know if you have any other questions or concerns.

Thanks,

Mark

[EmersonB]

Hello everybody,

@Dp0490, just one quick final check in here since activity has slowed down. We'll be locking the thread in the next 24 hours, but if you still need help, we would be happy to keep it open. If there's more we can do, just let us know.

I appreciate the help, Patrick_Caezza and Mark.
