Nest wiring question

[EZesq]

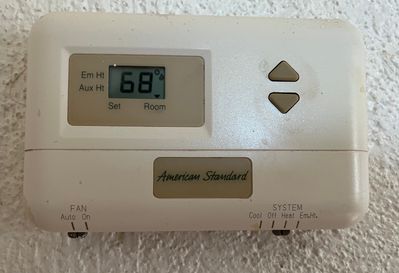

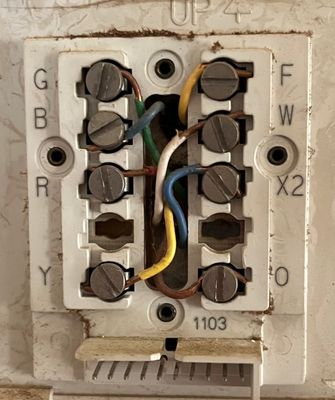

Hi again. Posted this photo before and now have a photo of the front of the old thermostat. All I know is that this runs a heat pump. Don’t know where on the outside unit Id need to take more pix of. Any chance anyone has a clue how to transfer this to a Nest thermostat?

 

 

[Patrick_Caezza]

Your current thermostat is compatible with the Nest 3rd Gen Learning Thermostat only.

Try this wiring

Green - G to G

Dark Blue - B to C

Red - R to Rc

Yellow - F to not used, tape off

White - W to W2 (set as AUX Heat)

Blue - X2 to *(set as Emergency heat)

Brown - O to OB

[EZesq]

Thanks. What about that lighter yellow on Y?

[Patrick_Caezza]

Oops, my bad

Yellow - Y to Y1

[Markjosephp]

Hello folks,

I wanted to ensure that everything was covered here.

I appreciate your help with the wiring setup. @Patrick_Caezza.

@EZesq, I'm checking in to see if you were able to install a Nest Thermostat. How's it going? Please let us know if you need more help so we can assist you right away.
