2 chimes and a lot of wires! How to install?

[PVG]

 

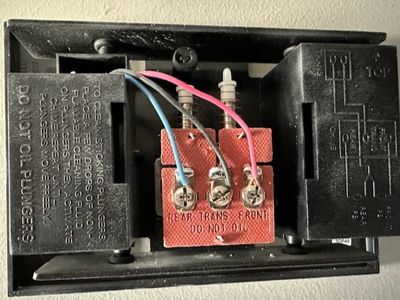

Looking for info on how to install a second generation wired Nest doorbell. I have 2 chimes and 2 standard doorbell buttons (front and back/basement entrances). One chime has 6 wires (near the front door where I want to install the Nest doorbell), and one with three (back/basement). Where does the chime connector go?

 

 

 

[MplsCustomer]

@PVG

The chime with 6 wires is probably connected directly to your doorbells and the second chime is chained to that one. The second wires on the "REAR", "TRANS", and "FRONT" on the 6-wire chime are probably running to your second chime in the basement. So you could try connecting the "chime puck" to the chime with 6 wires, connecting to the "FRONT" and "TRANS" posts if you're installing a doorbell for the front door.

https://support.google.com/googlenest/answer/12153643

[PVG]

Thank you! Was able to complete the install today and it worked out great. Thank you for the assistance.

[janthadeus]

Hey PVG,

You’re welcome! We’re glad to hear that. As we got our resolution here, I'm going to mark this thread as complete. I'll be locking this thread if we won't hear back from you again in 24 hours. Should that happen, feel free to create a new one if you have more questions or have other concerns in the future.
