01-14-2023 05:19 PM - edited 01-14-2023 05:24 PM

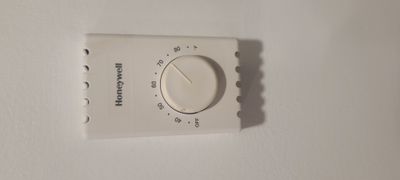

I currently have a Honeywell thermostat and would like to replace it with a Nest thermostat.
01-19-2023 10:12 AM
Hello Allen1013,
Thanks for reaching out to the Google Nest Community with your thermostat diagram. I'd be happy to take a look into this for you.
To determine your systems' compatibility with the Nest Thermostats. A few questions: do you have a cooling and heating system? What type of HVAC system do you have? Also, could you share with us a photo of your thermostat's wiring showing how the wires are labeled?
I'll look forward to your response.
Regards,
Mark
01-22-2023 03:53 PM
Hey there,
Checking back in if you still need help with this. Let us know by updating this thread and the Community will be happy to lend a hand.
Best,
Alex
01-23-2023 01:50 AM - edited 01-23-2023 02:23 AM
Electronic Baseboard heating only.
01-24-2023 11:43 AM
Hey there,
I appreciate your efforts in sharing the photos. However, it doesn't show how the wires are being labeled, such as by showing what terminals they're connected to. If possible, could you at least share with us a photo of your system's control board showing where the wires from your thermostat are connected? In this way, we can see what the use and why they are being tied.
I'll look forward to your response.
Thanks,
Mark
01-28-2023 10:36 AM
01-29-2023 12:49 PM
Hi Allen1013,
Thanks for sharing the photo. It appears that you have a high-voltage system with 120V or 240V and wire nuts. The L terminals are for the line or supply, and the T terminals are for loading. Basically, L is power in, and T is power out. In some cases, it's possible that your system can be made Nest Thermostat-compatible. But you'll need to contact a local pro and have them install a step-down transformer to 20- to 30-volts.
Feel free to let us know if you have more questions in mind.
Regards,
Mark
01-29-2023 06:58 PM
Can i use a Switching Electric Heating Relay?
Thanks
01-31-2023 01:14 PM
Hey there,
I wanted to follow up with you. I would recommend having an HVAC pro come out, and take a closer look at your system. They would be able to install a step-down transformer to ensure the device is powered correctly, and there are no issues upon installation.
Best regards,
Jake
02-03-2023 10:57 AM
Hey there,
I wanted to check in and see if you had any questions from here. Please let me know, as I would be happy to assist, and answer any you may have.
Best regards,
Jake
02-06-2023 12:37 PM
Hey there,
I wanted to check in, and let you know that I will be locking the thread in 24 hours.
Best regards,
Jake
