8 wire thermostat to Nest

[Austin334]

 

 

 

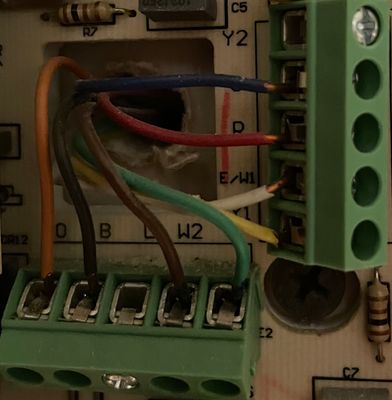

Recently purchased a nest thermostat that I was told was comparable with my system but when I plugged the wire labels in the installation program it said it was not. Wondering if it is actually not or if it is an issue with the program. It is a low voltage electric system with a 8 wire connection. The wiring is below and any help would be greatly appreciated. the photos above are of the current wiring and I am trying to wire in a base model nest thermostat.

 

[Jenelyn_O]

Hi Austin334,

Thanks for reaching out and for providing the photo of your old wiring.

Based on it, you have a heat pump system. Most commonly, the O and B wire is for the heat pump. For the Nest Thermostats we're only using one wire that should connect to the O/B terminal. It's unusual to have two 24V common, so we need to rule out the purpose of the B wire.

Could you please share the photo of your system's control board?

I’m looking forward  to your response

Regards,

Jenelyn

[Jenelyn_O]

Hi Austin334,

I wanted to follow up and see if you still need help. Please let me know if you are still having any concerns or questions from here, as I would be happy to take a closer look and assist you further.

Best,

Jenelyn

[Jenelyn_O]

Hi Austin334,

We haven't heard from you in a while so we'll be locking this thread if there is no update within 24 hours. If you need assistance or want to discuss topics, feel free to start a new thread.
