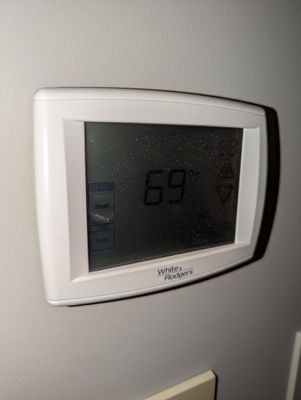

Help with wiring white rodgers to nest thermostat - compatability

[robinson1220]

[Houptee]

Just match up the wires but:

Put red in Rc if Nest Learning (or R on Nest regular) no jumpers are used on Nests

Put brown in OB

Blue B wire needs to be checked so you go to the air handler and remove the cover and look where the blue wire is connected. If it is a Trane brand system and it is on B screw then that is your C terminal.  If it is another brand then you do not need it and can move blue to the C terminal screw on the air handler and then put it on the C on the Nest.

Set it up as a Heat Pump with aux heat on W1 Nest Learning (or W for Nest)
