Nest compatibility with Zoneaire unit

SOCAL_CELT
Community Member

I recently purchased a new home that came with a Friedrich Zoneaire heating/cooling wall unit in one of the rooms. I looked at the front of the unit (model PZE09K3SB-A) and it appears I may be able to wire it to my Nest thermostat from my old apartment, I'm attaching some pictures of the unit, does anyone know if this is possible if I buy a wire harness?

Thanks!



  


1 Recommended Answer

Houptee
Silver Product Expert
Silver Product Expert

Looks like it will work but you will only have one fan speed you have to choose hi or lo when you connect the G wire to the unit.

You don't need a special wire harness you just use 5 conductor thermostat cable from Home depot or Lowes and the green terminal strip has small screws that clamp the wires tight.

R to RC

C to C

B to O/B

Y to Y

W to W1

G to GL or GH fan speed


Houptee -- NJ Master HVAC Licensed Contractor

View Recommended Answer in original post

9 REPLIES 9

Houptee
Silver Product Expert
Silver Product Expert

Looks like it will work but you will only have one fan speed you have to choose hi or lo when you connect the G wire to the unit.

You don't need a special wire harness you just use 5 conductor thermostat cable from Home depot or Lowes and the green terminal strip has small screws that clamp the wires tight.

R to RC

C to C

B to O/B

Y to Y

W to W1

G to GL or GH fan speed


Houptee -- NJ Master HVAC Licensed Contractor

Markjosephp
Community Specialist
Community Specialist

Hello folks,



I wanted to ensure that everything was covered here.


Thanks for helping here, @Houptee.



@SOCAL_CELT, I hope you've got the answer you're looking for. How's it going? Have you tried installing your Nest Thermostat? If you're still in need of assistance, feel free to let us know.



Regards,

Mark

SOCAL_CELT
Community Member

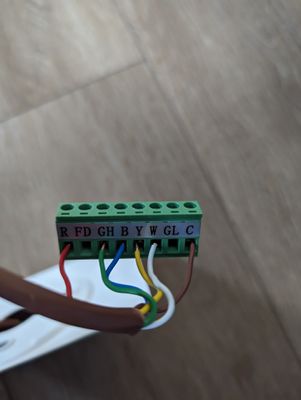

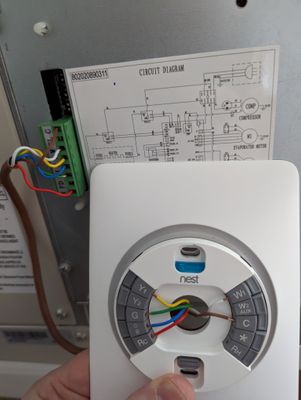

I wired the thermostat per the instructions above and I will try to attach pictures - the fan operation works but it blows cold air (AC) rather than heat when it gets below the thermostat heat setting. Any ideas why?

SOCAL_CELT
Community Member




Houptee
Silver Product Expert
Silver Product Expert

You can go into the Nest settings on the app and change the output of the OB wire to the other setting.

It has two choices, if it energizes OB in heat or cooling.

Read this how to change the O/B settings

https://support.google.com/googlenest/answer/9257086?hl=en#zippy=%2Cchange-the-ob-wire-settings




Houptee -- NJ Master HVAC Licensed Contractor

Thank you! I'll make that update and should be all set.

EdwardT
Community Specialist
Community Specialist

Hi folks,



@Houptee, thanks for the help!



@SOCAL_CELT, how's it going with your Nest Thermostat? Still need our help?



Thanks,

Edward

All set, I followed @Houptee's instructions and it works like a charm. This is a great forum, thanks for all the help!!
