Cannot figure out the difference in these two thermos?

Lyphe416
Community Member

Hi,

I have two identical furnaces and two 3rd gen Nest thermostats.

That said, when I look at the equipment setting for each, they are similar but also different.  I'm trying to figure out the difference and whether one is correct and one is wrong.  Anyone know the difference between the two images?  An HVAC guy installed the Nest with the 3 different heat sources and types ... and I did the other one, trying to replicate what he did.  Wiring is identical.  As of now, both systems work just fine, but I'd like to ensure one isn't incorrectly set up.


Thanks if anyone can assist.



Thermostat (1)


Thermostat (2)


3 REPLIES 3

Patrick_Caezza
Diamond Product Expert
Diamond Product Expert

@Lyphe416

Post a picture of each thermostat base wiring.


To ensure that I see your reply, please tag me using @Patrick_Caezza

@Patrick_Caezza

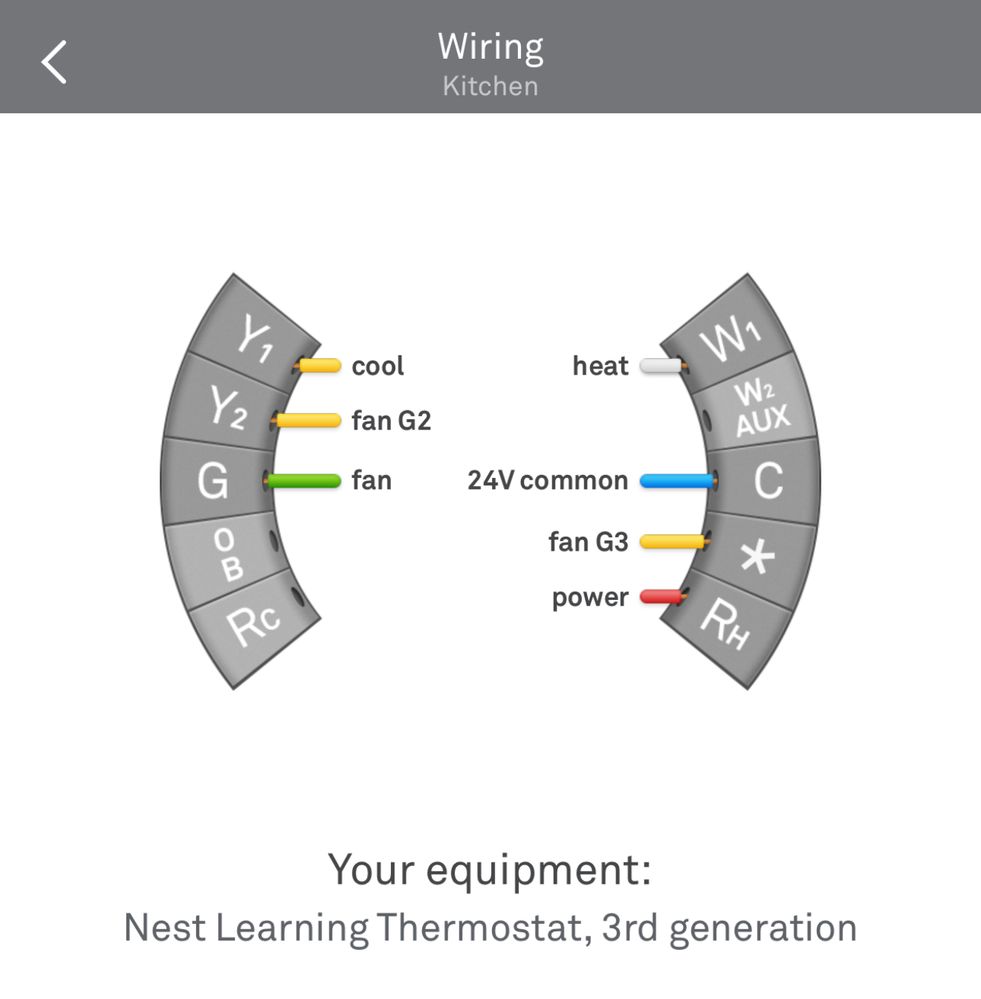

Here you go ...


Lyphe416
Community Member

@Patrick_Caezza

The settings behind each wire when in 'pro setup' mode are also identical ...
