Google nest 4th gen

[Mh754v]

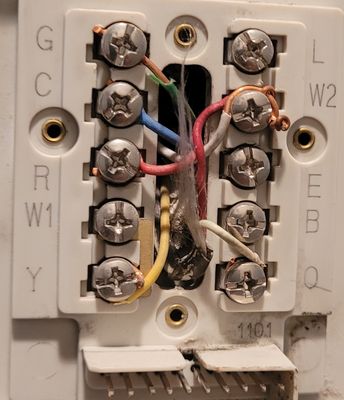

My old wiring( honeywell) has wires on

G, C, R, Y, W2, and O. With W2 having 2 wires on it which are not a jumper. How do I arrange this on the Google nest. Heat pump w emergency heat.

[Patrick_Caezza · Accepted solution]

@Mh754v

You need to figure out where that 2-wire cables go.

Post a picture of how the cables are terminated in the air handler/furnace.

[Mh754v]

 

[Mh754v]

 

[Mh754v]

 

[Patrick_Caezza · Accepted solution]

@Mh754v

You need to figure out where that 2-wire cables go.

Post a picture of how the cables are terminated in the air handler/furnace.

[Mh754v]

Will do

[Mh754v · Accepted solution]

 

[Mh754v]

I attached another drawing... this is what I found. The two seperate wires get spliced. It's a nice mess

[Mh754v]

 

[Mh754v]

The white,  and red( which gets spliced to black) both end up at the condenser spliced together on x2, but are seperate at the air handler wh1 and wh2

[Mh754v]

Model number of the air handler is 2/4TEC3F36A1000A

[Mh754v]

W2 wires are spliced together at the condenser and terminate on x2.... but hey are seperate at the air handler white on wh1 and black on wh2
