Is this wiring compatible with nest?

[Rlee]

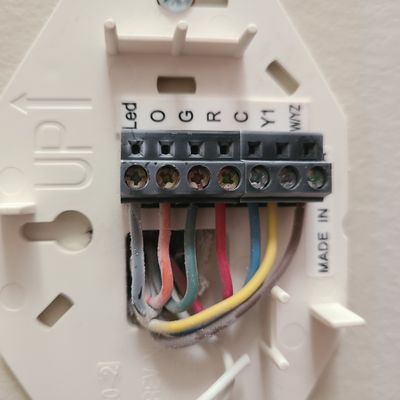

Just curious if this wiring setup will work with a nest or not.

Cheers!

[Rlee]

 

[Jenelyn_O]

Hi Rlee,

Thanks for reaching out. I'm sorry for the delay. I'd like to know more about it. Could you please share the photo of the wires that are connected to your HVAC control board? What is the make and model of your thermostat? Also, for more information you can visit this support article and try the compatibility checker.

Best,

Jenelyn

[Dan_A]

Hey there,

I wanted to follow up and see if you still need help. Please let me know if you are still having any concerns or questions from here, as I would be happy to take a closer look and assist you further.

Thanks,

Dan

[Dan_A]

Hello again,

We haven't heard from you in a while so we'll be locking this thread if there is no update within 24 hours. If you need assistance or want to discuss topics, feel free to start a new thread.


Cheers,

Dan

[Rlee]

Hello!

Thank you for replying, here are the control board photos.

[Rlee]

The thermostat and pump are ClimateMaster, the actual pump is Model GRV024BGC30CRTS

[zoeuvre]

Hi folks,

@Rlee, thanks for the follow-up information. Your thermostat wires are compatible with our Nest Learning Thermostat 3rd generation. Below is an image on how you should connect your thermostat wires to the Nest Learning Thermostat 3rd generation's base.

You won't need to connect the thermostat wires that go to the LED terminal of your current thermostat since they are not needed anymore. Also, here's a guide for the installation and set-up of a Nest Learning Thermostat 3rd generation.

Let us know if you have any other questions. We're happy to help.

I appreciate your help, Jenelyn and Dan.

Best,

Zoe

[Rlee]

Awesome, thank you. I will give this a shot.

[zoeuvre]

Hey Rlee,

Alright! I'll keep this thread while you give a shot to the information provided. Please let me know if you have any questions from here. I would be happy to assist and make sure you are good to go.


Thanks,

Zoe

[zoeuvre]

Hey folks,

I wanted to check and see if you are still in need of any help. Please let me know, as I would be happy to assist, and answer any questions you may have.


Thanks,

Zoe

[zoeuvre]

Hello there,

 Just one quick final check in here since activity has slowed down. We'll be locking the thread in the next 24 hours, but if you still need help, I would be happy to keep it open. If there's more we can do, just let me know.


Regards,

Zoe
