Need help with a wiring setup to Nest Thermostat Learning

[revoapparel]

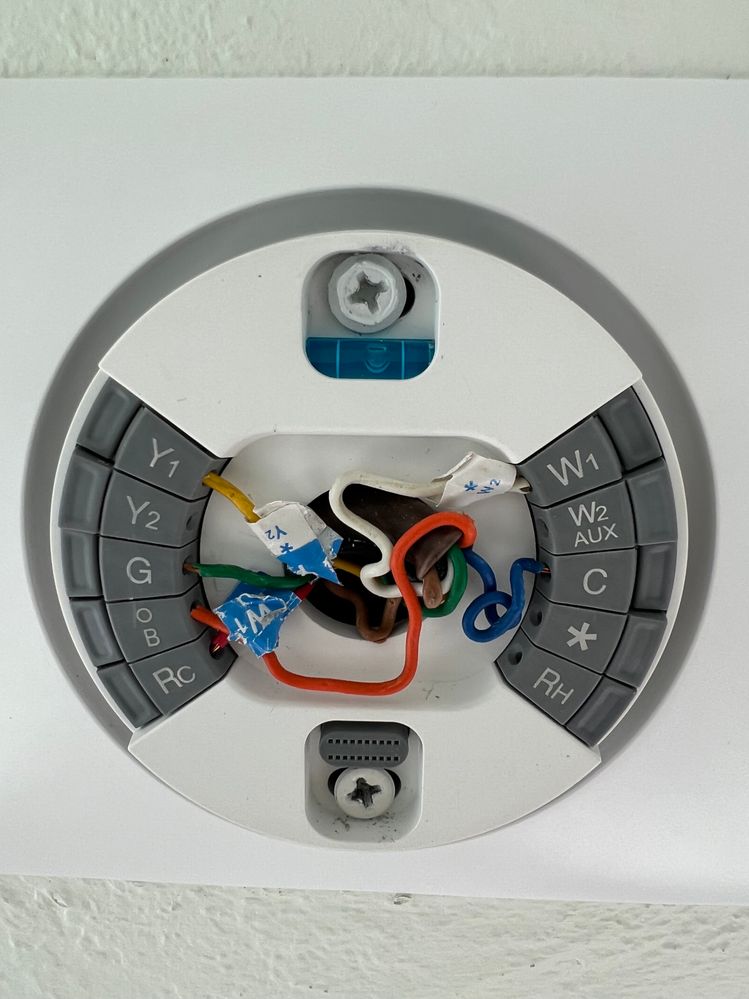

Old thermostatOld wiring from HoneywellExisting wiring

Hi everyone, I am looking for help with what to do with the extra brown wire that was previously connected to the Y terminal along with the yellow wire. What terminal should I connect it to the new Nest Learning Thermostat? Thanks!

[Markjosephp]

Hello revoapparel,

Thanks for reaching out to the Google Nest Community Forum. Let's sort this out.

It appears that you wired your Nest Thermostat correctly. But to be sure of the brown wire's purpose, could you please check and share with us a photo of your HVAC system's control panel to see how it was labeled?

I'll look forward to your response.

Regards,
Mark

[Msoriano]

Need help!

[Msoriano]

 

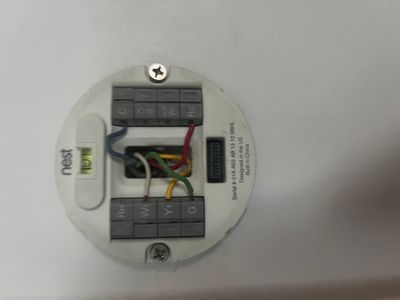

Is the wiring correct?? Red light one the nest thermostat and wiring error

 

 

[Markjosephp]

Hi Msoriano,

Help's here! I appreciate you reaching out to this thread. To better look into this, could you please tell us the message code or wiring report you're getting? Also, gather the power readouts in the Technical Info option so we can isolate the issue.

Keep us posted.

Thanks,
Mark

[Markjosephp]

Hello everyone,

I wanted to follow up and see if you are still in need of any help. Please let me know if you are still having any trouble from here, as I would be happy to take a closer look and assist you further.

Best,

Mark
