2 wire thermostats and power adapter

[Brinbfr]

Sorry if this has been asked, my search skills are lacking.

I have an old mercury based Honeywell thermostat with 2 wires, red and white.

connected the red wire to R and the white wire to W and the thermostat is working for heating fine.

the thermostat came to me with a low battery so I cannot connect to WiFi.

bought a transformer that was supposed to work and I am supposed to connect it between Rc and C.

problem is I do not have an Rc.

my brand new nest only has Y, C, W, G, R, and *OB

Where do I connect this transformer to charge my batteries

thanks in advance

[Patrick_Caezza · Accepted solution]

@Brinbfr

You must purchase the Nest Power Connector to use the Google Nest Thermostat with your system.

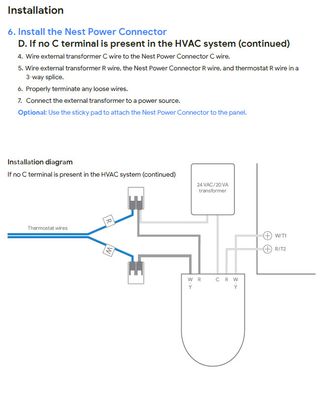

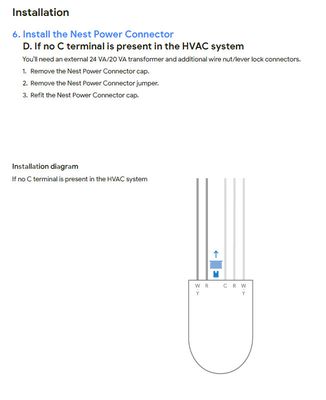

Then wire it like this.

[Brinbfr]

Thanks Patrick

I did buy the nest power adapter, but could not find the use case that you sent me above, which matched exactly what I was looking for.
I installed per this diagram and instructions and the Nest is functioning properly and no more equipment errors.

THANK YOU

@Patrick_Caezza
