Attempt to install nest on Bryant

[bbooska]

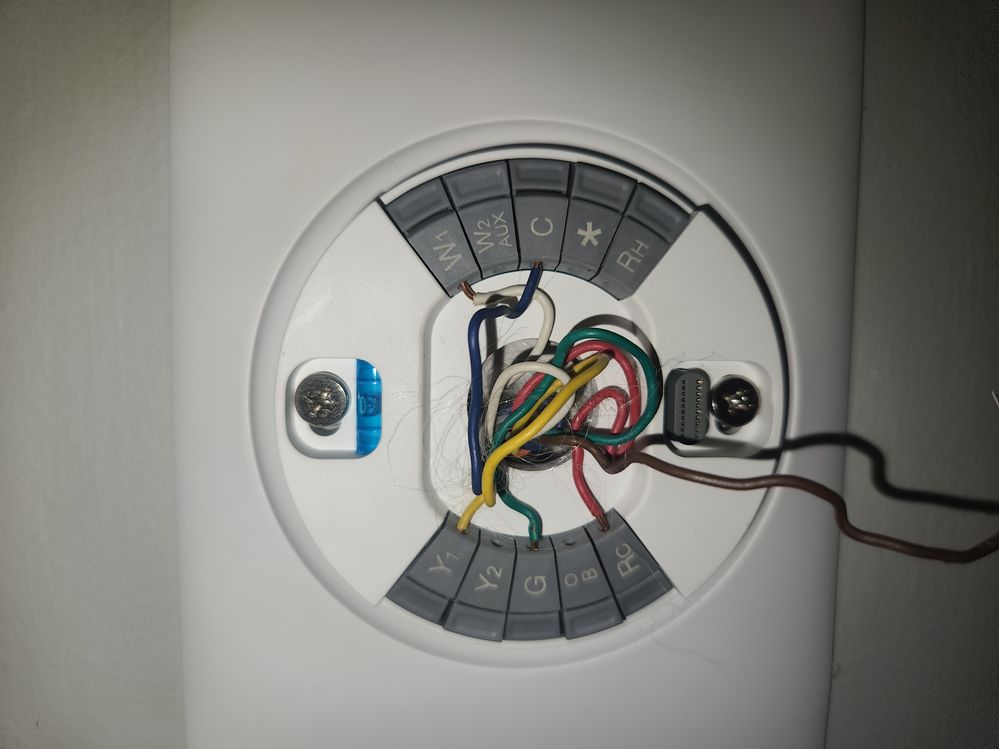

The only paperwork I could find regarding model was BA13 and a couple others that shared the same paper work. I hooked the nest up as shown first with the Brown wire in the O/B spot then in the W2 spot. I couldn't get a single function to work, heat, heat2, AC or fan, and was forced to put the old thermostat back on. Can't find what the ACC+ brown wire should go to or why not a single function worked. I figured if I had a wire in the wrong spot it would at least run a few of the functions. Anyone know how to wire it?

[Patrick_Caezza]

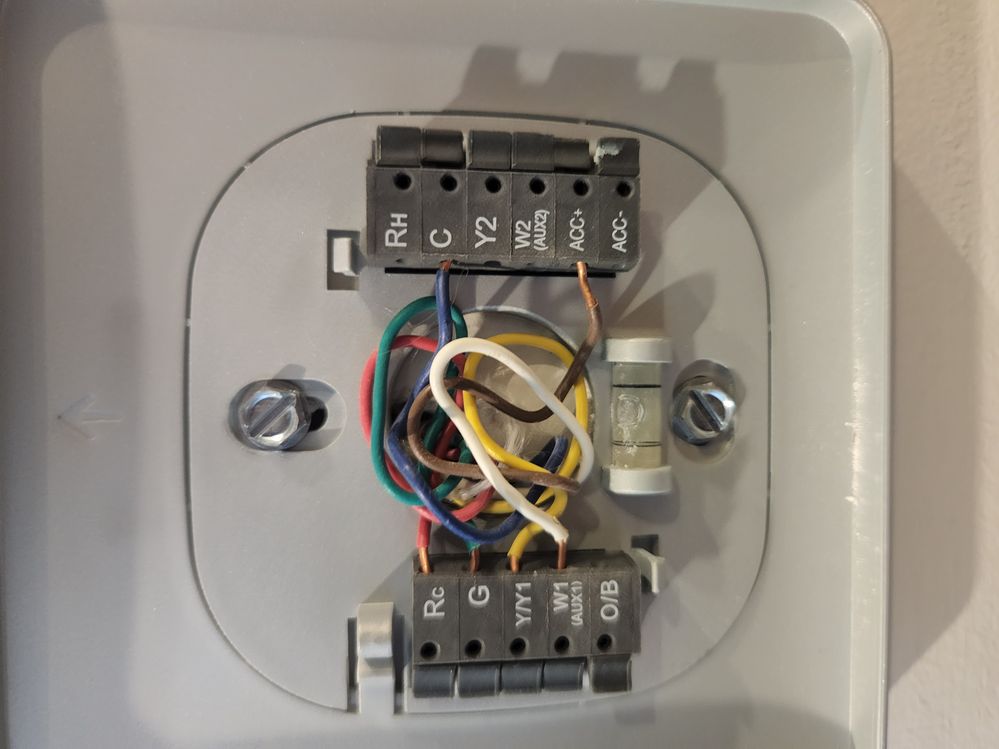

Post a picture of the original thermostat's wiring here

[bbooska]

Added, thanks!

[Ryan_G]

Hey folks,

Thanks for visiting the Google Nest Community.

Since this thread hasn't had activity in a while, we're going to close it to keep content fresh.

If you have additional questions, feel free to submit another post and provide as many details as possible so that others can lend a hand.

Hope this helps!

Kind regards,

Ryan

[bbooska]
