Check wiring for nest thermostat

[trpilot]

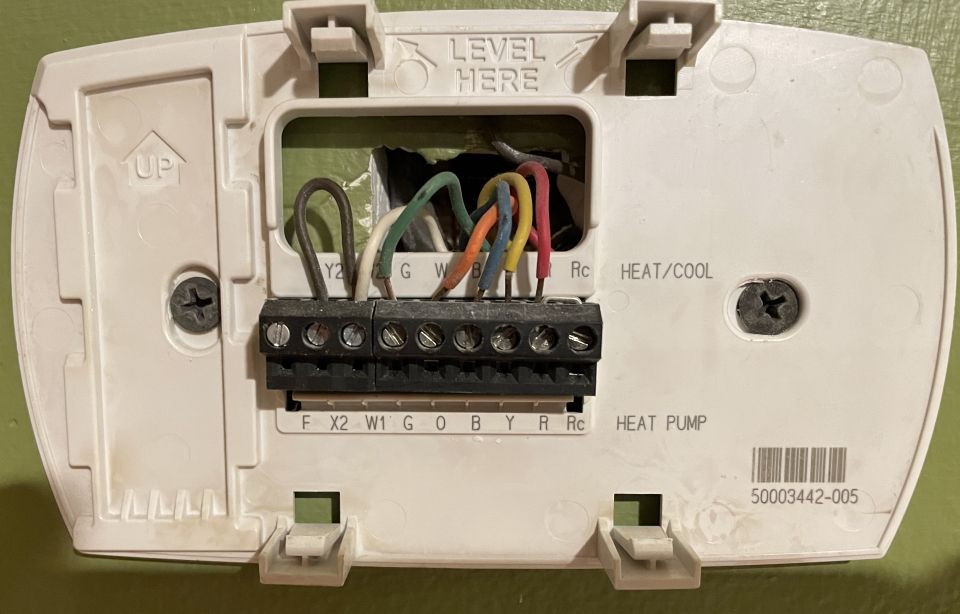

Wanting to confirm the wiring and compatibility with nest

[Patrick_Caezza]

Your system is compatible with any Nest thermostat.

Try this wiring.

White W1 to W2/AUC or W (Set as AUX heat)

Green - G to G

Orange - O to */OB

Blue - B to C

Yellow - Y to Y1 or Y

Red - R to Rc or R (jumper to Rc not needed)

The "or is for the Google Nest Thermostat

[Ryan_G]

Hi trpilot,

Thanks for reaching out here in the community.

I'd like to jump in here and check if you've seen Patrick_Caezza's response about the wiring configuration.

Thanks for your help, Patrick_Caezza.

Best regards,

Ryan

[Ryan_G]

Hey trpilot,

I just wanted to follow up and see if you're still in need of help. Please let us know as we would be happy to answer any questions you may have.

Best regards,

Ryan

[Ryan_G]

Hey there,

Thanks for being here in the Google Nest Community.

I'd like to bump in here and make sure that you’ve seen our response.

Please let us know if you have any other questions or concerns as I will be locking this thread in 24 hours.

Have a great day.

Best regards,

Ryan
