Common wire

Grimreaper42
Community Member

Tried installing a 1st gen google nest. Wires from old is rh and w. Installed and needed a common c wire or google power cord. My electrician helped me and still can't detect common wire. We tried three different wires. I bought a 18/5 thermostat wire and strung it through and connected. It was too short, we added 1 foot of stranded wire to it (I see no stranded wire) but he is unsure why it shouldn't work, he checked voltage and he is getting 30 volts from RH-W. So I left the new wires connected, disconnected just the common, grabbed the old rh wire that hasn't been tampered with and plugged to common to common. Still undetected

9 REPLIES 9

Patrick_Caezza
Platinum Product Expert
Platinum Product Expert

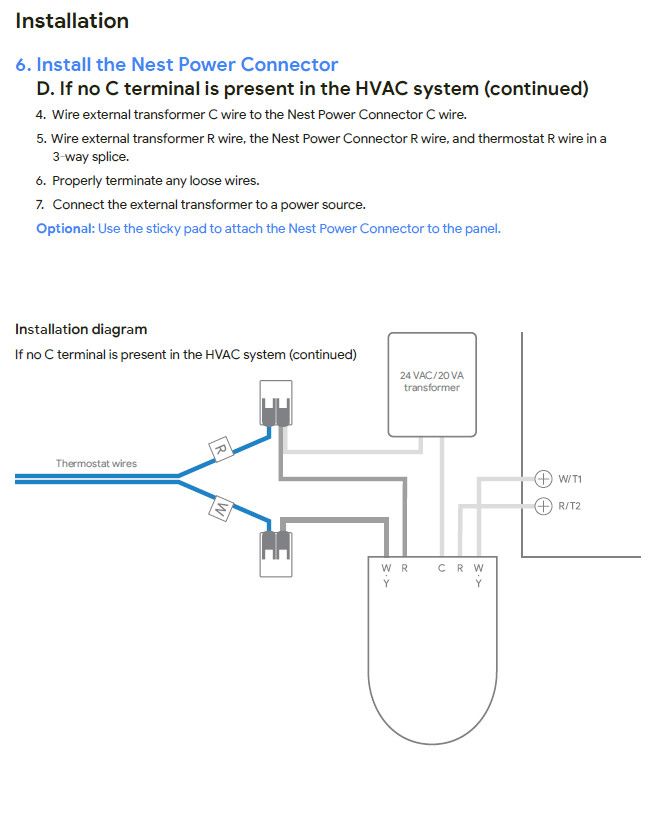

It sounds like you will need an external 24VAC transformer and the Nest Power Connector.



To ensure that I see your reply, please tag me using @Patrick_Caezza

Ryan_G
Community Specialist
Community Specialist

Hi Grimreaper42,



Thanks for reaching out.



I'd like to jump in here and check if you've seen Patrick_Caezza's response. We'd like to hear how it goes by getting a reply from you on this thread.



Best regards,

Ryan

I just saw the message and will gladly try this with transformer if it will work with an electric furnace. It's not a HVAC. 2 speed blower motor. Schematics and wires

  https://photos.app.goo.gl/h3HSDNMKNBdhZZWR7

Ryan_G
Community Specialist
Community Specialist

Hey Grimreaper42,



I just wanted to follow up and see if you're still in need of help. Please let us know as we would be happy to answer any questions you may have.



Best regards,

Ryan




Google is sending another thermostat to see if that work, possibility ine I have might be faulty.... just waiting for it. I will follow up

Does the transformer need to a 24v/20va?

Or can a 24v/40va work as well?

The 20va ones I have found needs to be plugged into a wall. And the 40va can be hard wired in.

Brad
Community Specialist
Community Specialist

Hey there,



In an attempt to keep content in these forums fresh, we'll be locking and closing this thread. If you still need assistance with this issue, feel free to start a new thread. Thank you for your understanding.



Best regards,
Brad

Hope pics turn out. It's just a heated 2 speed motor blower,  the pics of nest is before adding a common, second is when a wire is directly connected to it. Code is N261. If the transformer is still an option I will go and get one. Thank you.

https://photos.app.goo.gl/h3HSDNMKNBdhZZWR7

Does the transformer need to a 24v/20va?

Or can a 24v/40va work as well?

The 20va ones I have found needs to be plugged into a wall. And the 40va can be hard wired in.
