Help, Will my current wiring work with the Google Nest Learning Thermostat

Mrtayto
Community Member
5 REPLIES 5

Patrick_Caezza
Platinum Product Expert
Platinum Product Expert

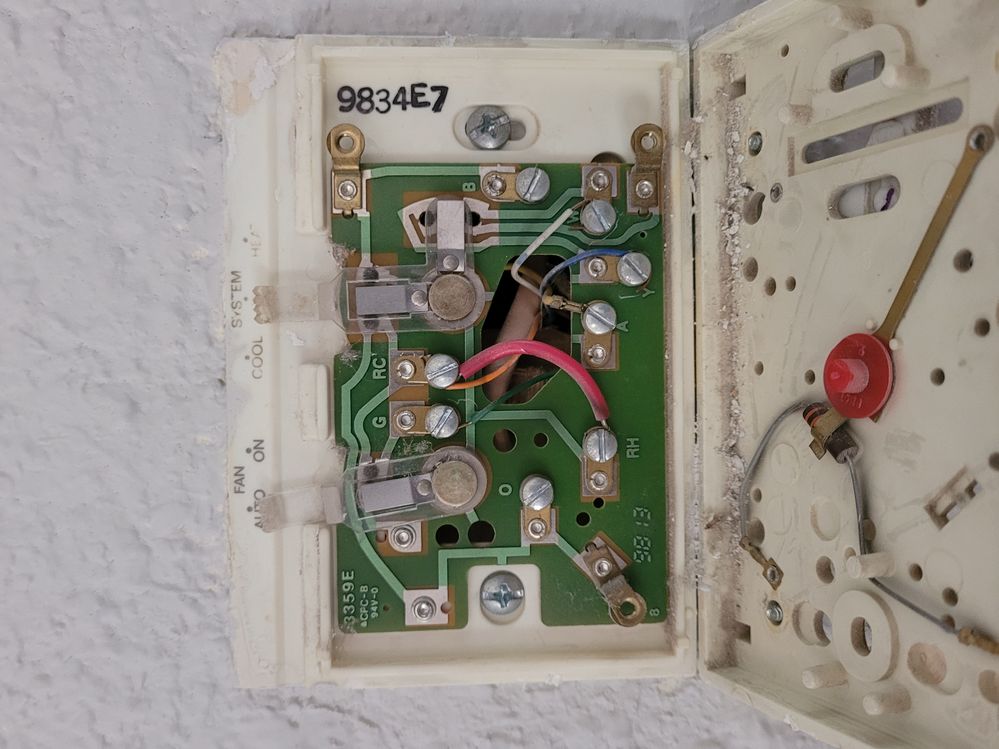

Yes, your current thermostat is compatible with the Nest 3rd Gen Learning Thmerostat.



Give this wiring a try.



Orange - RC to Rc (jumper to RH not needed)

Green - G to G

Blue - Y to Y1

White - W to W1



You might have some problems with the cable that was used. The terminals on the base don't always grab the thin wires from a data cable.


To ensure that I see your reply, please tag me using @Patrick_Caezza

how can i tell you which gen of the learning thermostat that i have?



also i seen your replys on here to many others. I greatly appreciate you being the one to comment back and let alone give me a wire configuration to try. Thank you so much.



im going to try this first thing in the morning

Ryan_G
Community Specialist
Community Specialist

Hey folks,



We're glad to see you all here in the Google Nest Community.



In addition to what Patrick_Caezza has mentioned, you can check this link to tell which Google Nest thermostat you're using.



Thanks for always helping us, Patrick_Caezza.



@Mrtayto, let us know how it goes with your thermostat by replying to this thread.



Best regards,

Ryan

Ryan_G
Community Specialist
Community Specialist

Hey folks,



Thanks for visiting the Google Nest Community.



Since this thread hasn't had activity in a while, we're going to close it to keep content fresh.



If you have additional questions, feel free to submit another post and provide as many details as possible so that others can lend a hand.



Hope this helps!



Kind regards,

Ryan




Patrick_Caezza
Platinum Product Expert
Platinum Product Expert

If you have bought it since 2015 you  have the 3rd Gen


To ensure that I see your reply, please tag me using @Patrick_Caezza
