Help on thermostat compatibility!

[YuchenXie]

Requesting help, I am very interested in purchasing a Nest Thermostat, but I am not sure if it is compatible with my home. It now has seven wires already connected and they are R , W/Y, Y/A, GI, Gm, GH, and C. 

[Patrick_Caezza · Accepted solution]

You are compatible with the Nest Learning Thermostat, 3rd Gen

Try this wiring

Blue - R to Rc

Orange - W/Y to W1

Yellow - Y/A to Y1

Red - Gl to G

Green - Gm to Y2 (set as 2nd-speed fan relay)

Black - Gh - to * (set as 3rd-speed fan relay)

White - C to C

[Patrick_Caezza]

Yes, your system is compatible with the Nest Learning THermostat, 3rd Gen.

I can't see the colors of the wires at each terminal. Can you post a picture showing them?

[YuchenXie]

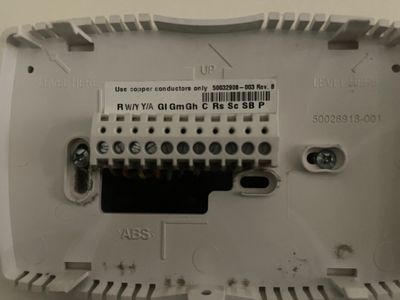

Thank you very much for your reply sir! As shown in the picture Blue-R, Orange-W/Y, Yellow-Y/A, Red-GI, Green-Gm, Black-Gh, White-C.

 

[YuchenXie]

 

[Patrick_Caezza · Accepted solution]

You are compatible with the Nest Learning Thermostat, 3rd Gen

Try this wiring

Blue - R to Rc

Orange - W/Y to W1

Yellow - Y/A to Y1

Red - Gl to G

Green - Gm to Y2 (set as 2nd-speed fan relay)

Black - Gh - to * (set as 3rd-speed fan relay)

White - C to C
