How to wire our Nest Learning Themostat 3rd gen

[capic]

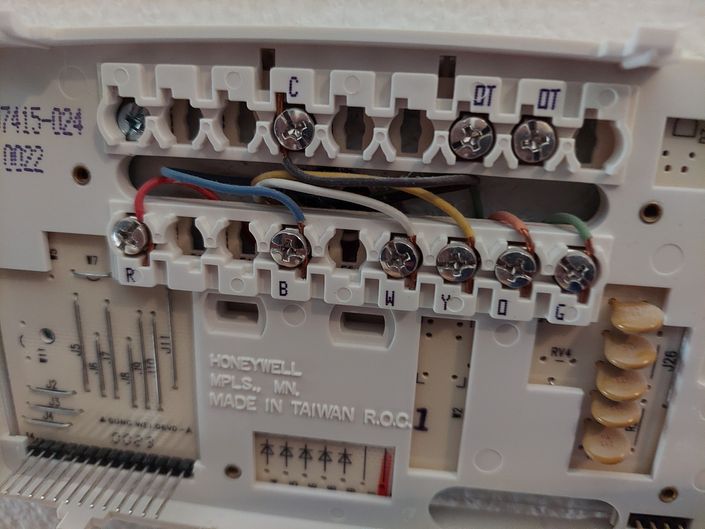

We have a Heil forced air heating system and a separate air conditioning system. Below is a pic of the wiring of our current thermostat. Any suggestions about how to wire the Nest? Thanks.

[capic]

Spoke to Google Nest support and were told we need to insert a relay between the "B" and "O" wires so that we can insert one wire into the O/B terminal of the Nest thermostat. Any specifics on how to do this? Thanks.

[EdwardT]

Hi capic,

Thanks for reaching out. I'm sorry to hear that you're having an issue with wiring your Nest Thermostat. I'd love to know more about this. If possible, could you check the control board of your HVAC and check the label of the terminal where the blue wire is connected? Also, what is the model of your Honeywell thermosstat?

Thanks,

Edward

[Jake]

Hey capic,

I wanted to check in and see if you managed to see Edward's post. Please let me know if you have any questions from here. I would be happy to assist, and make sure you are good to go.

Best regards,
Jake

[Jake]

Hey capic,

I am sorry to hear you no longer have the device, and for the trouble you had run into. With you no longer having the device for us to troubleshoot, I am going to lock the thread from here. If you have any questions, please feel free to create a new post.

Best regards,

Jake

[capic]

We gave up and returned the Nest thermostat.
