Is my thermostat wiring compatible?

MauritoFR
Community Member

Hi everyone! I have two different thermostat, the one I want to upgrade to google nest is the one for the heating (connected to Panasonic Aerothermia for flooring heating)
Can you give me any

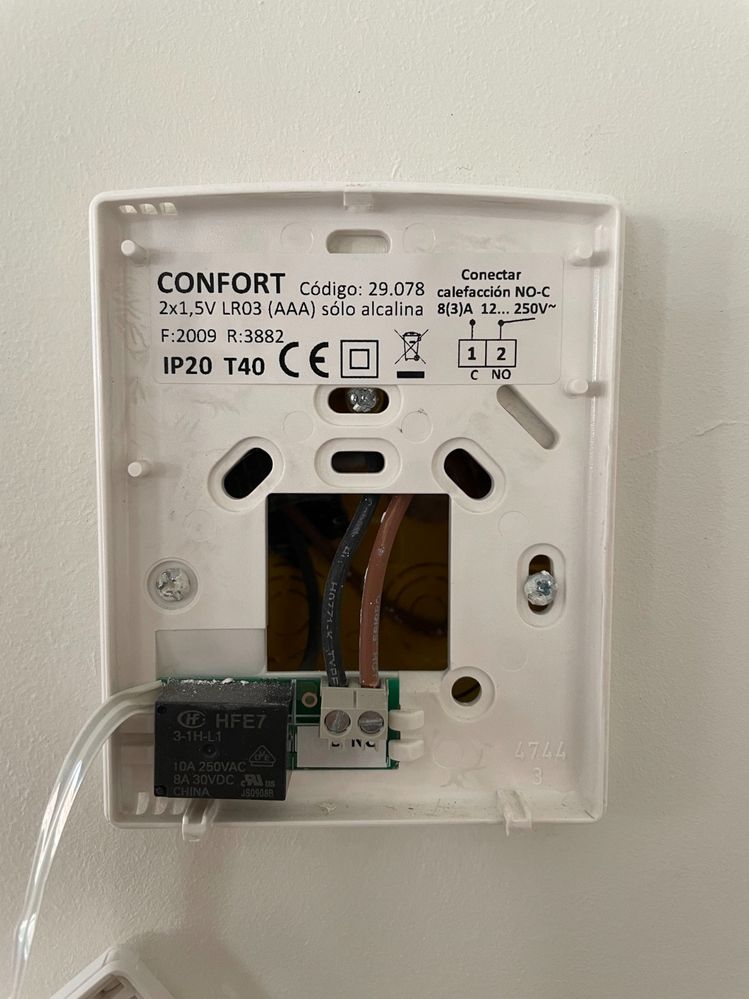

WhatsApp Image 2022-10-25 at 10.32.56 PM.jpegWhatsApp Image 2022-10-25 at 10.31.45 PM.jpeg

6 REPLIES 6

Markjosephp
Community Specialist
Community Specialist

Hi MauritoFR,



Thank you for taking an interest in choosing a Nest thermostat for your home. I'd be happy to take a look into this for you.



Based on the wiring setup shown in the attached pictures, your thermostat has no label. To ensure your systems' compatibility with the Nest thermostats, do you mind me asking the make and model of your HVAC system and what type it is? Also, could you please send us a picture of your system's control panel showing how the wires are labeled?



Have a look at this article and let us know if you need more help.



Best regards,

Mark

Hey folks,

Thanks for lending a hand, @Markjosephp.
@MauritoFR, I wanted to follow up and see if you are still in need of any help. Please let me know if you are still having any concerns or questions from here, as I would be happy to take a closer look and assist you further.

Thanks,
Mel

MauritoFR
Community Member

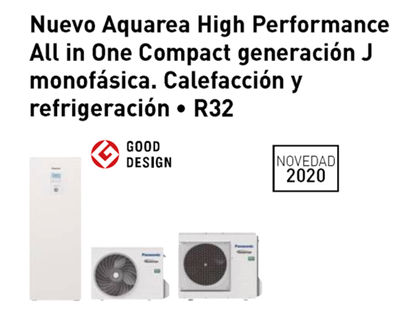

HI Mark and Jhon, i have an aerothermal Panasonic Aquarea KIT-ADC07JE5c

Thanks again!

Markjosephp
Community Specialist
Community Specialist

Hello MauritoFR,



Thanks for sharing the detail. It appears that you have a combi-type system with heat and cool.



To get a better result, do you have a picture of your system's wiring configuration? You can examine them in the control panel to see how we can label them.



I'll look forward to your response.



Best regards,

Mark

Markjosephp
Community Specialist
Community Specialist

Hey there,



I'm checking in to make sure that you've seen my response. Please let us know if you have any other questions or concerns.



Best regards,

Mark

Hi MauritoFR,

Chiming in to check if you have additional questions or concerns, as we will be locking this thread within 24 hours.



Best regards,

Mark
