Nest Learning Thermostat Compatability

Lighthousetom
Community Member

Hi there



I have just gone through the online compatability checker and was unsure what wires to select on the checker

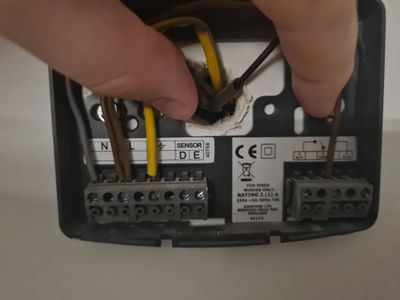

I  have  attached an image of the wiring for my current thermostat

I have got (from what i can see..):



N

L

Some kind of symbol?

COM

N/O





These were not options in the compatability checker and I am an amatuer with things like this.. just dont want to purchase if i wouldnt be able to set up in the future




Thanks for any help in advance



Tom

3 REPLIES 3

MelbaDT
Community Specialist
Community Specialist

Hey Lighthousetom,



Thanks for reaching out and for the photo.



Since your thermostat has uncommon terminal labels, it is best to reach out to a professional. Please contact an HVAC technician or a local pro for assistance.



Best,

Melba

MelbaDT
Community Specialist
Community Specialist

Hey there,



How's it going? Still need our help here?



Best,

Melba

MelbaDT
Community Specialist
Community Specialist

Hi,



We haven't heard from you in a while so we'll be locking this thread if there is no update within the day. If you have any new issues, updates or just a discussion topic, feel free to start a new thread in the Community.


Best,

Melba
