Nest thermostat wiring

[muhimasri]

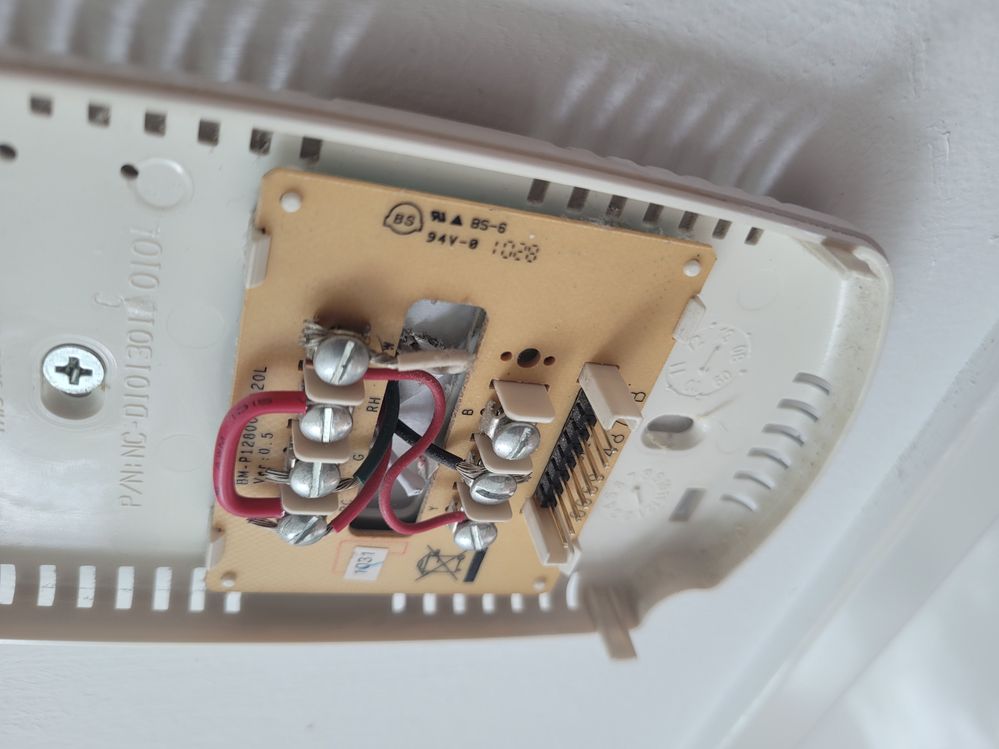

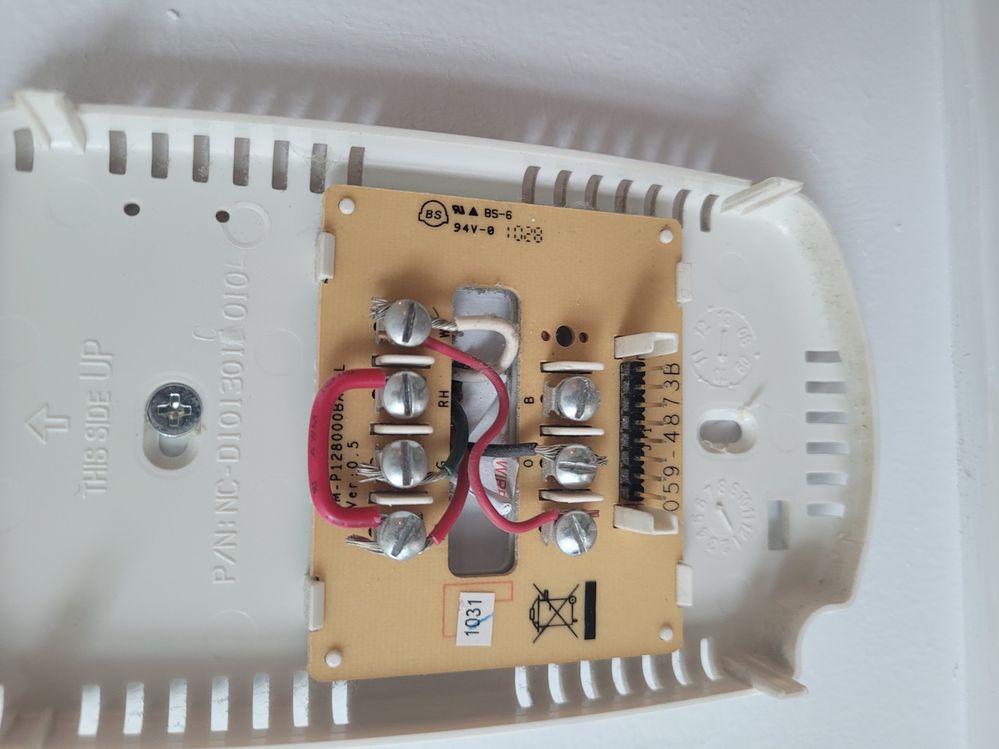

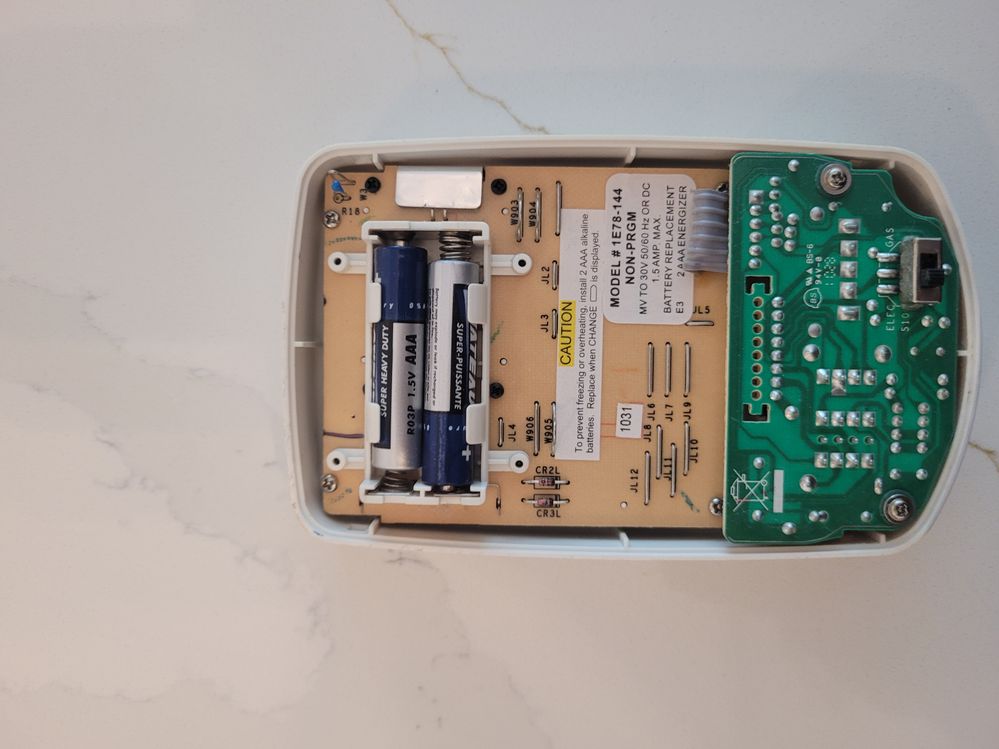

Hello, I just got a Nest thermostat and having trouble mapping the wires. I just want to check if my system is even compatible before I either get a professional or return the thermostat.  Attached all photos, please let me know if you need any more information.

Thanks!

[Jake]

Hey muhimasri,

Sorry for the late reply. I wanted to follow up and see I could be of any help. I found an article with more details on compatibility. Please let me know if you are still having any trouble from here, as I would be happy to take a closer look and assist you further.

Best regards,
Jake

[Jake]

Hey muhimasri,

I am glad to hear you are getting a pro to come out, and set the device up. I am going to ahead and keep the thread open for a couple of days to ensure everything is working properly once set up. Please feel free to reach back out if you run into any trouble, or have any questions.

Best regards,

Jake

[Jeff]

Hey muhimasri,

I just wanted to follow up once more to see if you were still needing some help here. If so, just let us know.

Thanks,
Jeff

[muhimasri]

Hello, thanks for the follow up. I found a professional who will come install it for me. It seems that I'm missing a C wire that needs to be extended from the wall.

Cheers,

Muhi

[Jhonleanmel]

Hi everyone.


@Jake, thanks for the help here.
@muhimasri, as we got our resolution here, I'm going to mark this thread as resolved. I'll be locking this thread if we won't hear back from you in 24 hrs. Should that happen, feel free to create a new one if you have more questions or have other concerns in the future.

Cheers,
Mel
