Solved: Hooking up both black and blue wires.

[Subiewrx22]

I have a nest learning 3rd gen and have the yellow to y1, green to g, orange to ob, red to rh, im not sure where to hookup the white , blue (old c wire), and a black wire which was twisted together with the black and hooked into the w2/aux on the old honey well. My system is a electric heat pump. Any help would be nice. Thanks.

Moderator edit: Subject updated for clarity and findability.

[Subiewrx22 · Accepted solution]

• Got it figured out

[Subiewrx22 · Accepted solution]

• Got it figured out

[Subiewrx22 · Accepted solution]

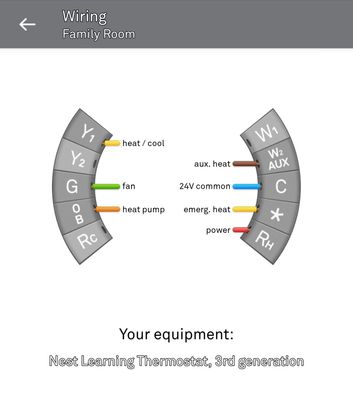

If you have a electric heat pump with emergency heat hook up the wires as follows. I ran the test with all of the functions and everything works.

• Yellow to Y1 (Heat/Cool)
• Green to G (Fan)
• Orange to O/B (Heat Pump)
• White to W2/Aux (Aux heat)
• Blue to C (24V)
• Emergency Heat wire to * (mine is black)
• Red to Rh (Power)

Hope this helps.

[Jpnest]

So where did you connected the black

[Subiewrx22]

So my black wire ended up being my emergency heat and connected it to the * (asterisk)

[Subiewrx22]

 

[Subiewrx22]

My W2/Aux wire is actually white and my emergency heat wire is black

[zoeuvre]

Hi all,

@Subiewrx22, thanks for reaching out. I want to check if you managed to see the response from Jpnest. Please let us know if you still have questions or concerns, as we'll be willing to assist you more.

Thanks for your help, @Jpnest.

Best,

Zoe
