System compatibility

[MikeStrat]

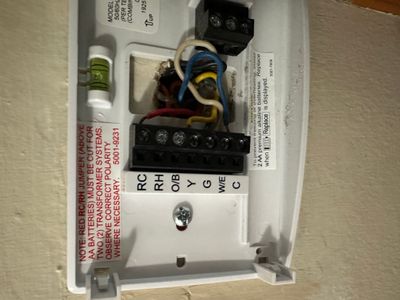

I want to see if my system is compatible. I can’t find one of the wires in the is my system compatible. Any help is appreciated. Pics included.

 

 

[CoolingWizard]

Hello MikeStrat,

your HVAC system is a conventional Heating and Cooling system and is fully compatible with a Nest Thermostat. The wires being used to control your HVAC system are as follows:

• RC - Red wire is Power IN
• Y - Yellow Wire is Compressor Contactor Control for Cooling
• G - Green wire is indoor blower fan control
• W/E - White wire is Heating Control
• C - Blue wire is  Power COMMON

You need to note what type of heating system you have, My guess is it is Gas Furnace.

Ken, The AC Cooling Wizard

[EdwardT]

Hi folks,

@CoolingWizard, thanks for the help!

@MikeStrat, how's it going with your Nest Thermostat? Still need our help?

Thanks,

Edward

[EdwardT]

Hi MikeStrat,

It's me again. I wanted to check back in to see if you have other questions and concerns. Feel free to let me know if you do.

Thanks,

Edward

[EdwardT]

Hi MikeStrat,

I'm just checking in to make sure that you've seen our response. Please let us know if you have any other questions or concerns as I will be locking this in 24 hours.

Thanks,

Edward
