12-28-2022 10:58 AM
I’m have installed a nest Model 1.4 learning thermostat on my gas fired Variable Speed Bryant forced air unit. The fan seems to only run on turbo speed. Is there a setting to allow the variable speed option to work? I’m only running heat now for a couple of hours in the morning time. Could it be that the temperature in my home never gets a chance to balance out during the two hour morning run time so it just runs turbo speed?
12-28-2022 12:08 PM
The fan speed is control by the Furnace Integrated Control board. If however, the thermostat sends a call for heat and a call for the blower at the same time, the variable speed control is overridden. Make sure in your thermostat settings that the Blower, the G wire, is not activated on a heating call.
Ken, The AC Cooling Wizard
12-28-2022 12:24 PM
12-28-2022 12:25 PM
If you have plugged a wire to the OB, you need to set the setting of that wire. Tap the OB and define its function.
12-28-2022 12:31 PM

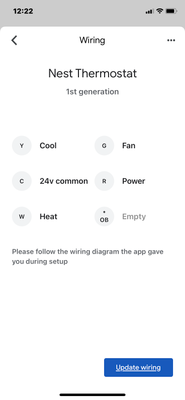

This is what I’ve got.
12-28-2022 12:39 PM
12-28-2022 12:55 PM

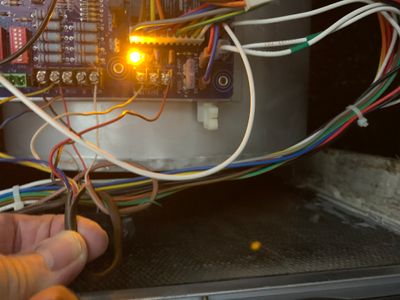

You have a 2-stage heating system and the Brown wire is connected to W2 in your furnace control board. You need to define the O/B as state 2 Heat.
12-28-2022 01:05 PM
thank you for your help!
01-01-2023 09:14 AM
Hello folks,
I wanted to ensure that everything was covered here.
Thanks for helping here, Ken.
@Hague, I hope you've got the answer you're looking for. If you're still in need of assistance, feel free to let us know.
Regards,
Mark
01-01-2023 09:57 AM
Resolved
01-01-2023 10:07 AM
Hi Hague,
Awesome! I'm happy to hear your problem has been resolved. It appears that we can mark this one as complete, so I'll close this thread in 24 hours unless I can assist you in any way.
Regards,
Mark
