Wire diagram on Nest Learning Thermostat

[Gonzalem08]

•

   

  I bought a Nest Learning Thermostat but I need help with the wire connection. When I ran the matrix compatibility with my existing Honeywell Thermostat, Nest Learning Thermostat came up as the compatible product.

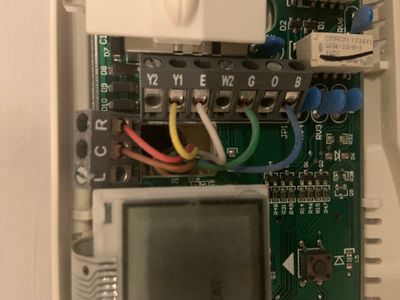

The current active wire on my Honeywell thermostat are C R Y1 E G B. I need help on mapping the wires to the Nest Learning Therm.

[MelbaDT]

Hey Gonzalem08,

Thanks for posting and welcome to the Google Nest Community.

Our Nest app will also give you a custom wiring guide for your thermostat during the installation process. You may also check on this link to know more about Nest thermostat compatibility: https://bit.ly/3buNFQC

Best,

Melba
