Wiring Check Please

[Jester204]

Moved to a new house, brought our thermostat with.

Will it work?

(Not sure how to add a pic on original post, hoping I can reply to myself)

[Jester204]

You would think on a Google Pixel phone accessing the Google nest community page thru Google Chrome... I would have the supposed camera icon to upload pictures.

Sorry to be a newb, help a sister out. 😂

[MplsCustomer]

You have to be logged onto this forum (by clicking on the blue profile icon in the upper right corner) BEFORE trying to post a reply, in which case a camera icon appears at the top of the reply window.  However, for some reason the upload of the image often fails with an "Unable to save image" error; I don't know why.  Sometimes if I try the next day I am able to upload an image.  On this reply I was unable to upload an image.

[Jester204]

First, thank you for the kind reply on making sure I was logged in. Now I see the image button!

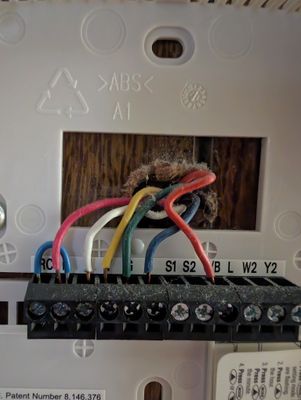

Now to the important stuff, will this system work?

 

[Patrick_Caezza]

@Jester204

I can't see the labels for each terminal, but it should work.

Post a picture with the label visible
