Nest Doorbell - Firedland Chomes (Honeywell D107)

[Philab]

I just installed a nest Doorbell camera wired second generation . Everything is working except  my chime is not working anymore when pressing the button on the doorbell.     The chimes works perfect when I disinstalled the Nest and place the STD  button.

My chimes does not have the STD 2 wire as described in the instruction.   It is a  friedland D107 from honeywell.     It is quite common I think.

I have tried to put the puck between 2 and T3 but it does not work. Also tried between  1 and T3 .

It does not ring without the puck either.   Is the puck a resistance ?  What is the purpose of it ?

What shoudl I do to resolve my issue.   I measured 18 V between 0 and T3,   0 and 1 and 0 and 2.   What should I do to resolve my issue ?    There is not much instruction for installation....

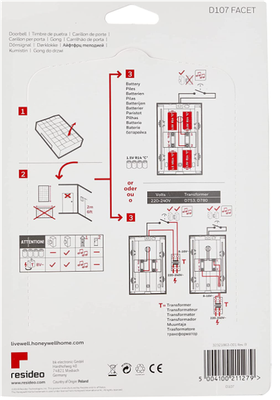

Photo of my chimes are attached.

[zoeuvre]

Hi Philab,

I know it's been a while, and I'm sorry to hear about the situation.

What type of Nest Doorbell you have? And since your chime has two or more wires, your doorbell can probably work with a Nest doorbell, but you need to check the voltage. You might find its voltage inside your doorbell chime box, near your breaker or fuse box, and in the basement or crawl space under your home.

I'll look forward to your response.

Best,

Zoe

[Juni]

Hi there,

I just wanted to follow up to see if you still need our help. Please let us know, as we would be happy to answer any questions you may have.


Regards,

Juni

[Juni]

Hello there,

We haven’t heard back from you, so I'll be locking this thread in 24 hours. Feel free to create a new one if you have other concerns in the future.


Thanks,

Juni

[Philab]

I have been able to resolve the problem by myself.

[Juni]

Hi Philab,

As we got our resolution here, I'm going to mark this one as resolved. Please feel free to open up a new thread if you need assistance.


Cheers,

Juni
