Amana heat pump with new nest thermostat

[jcdenton]

I have an Amana heat pump that has the brown wire going to the W/E connector. Where would that go on the 4th generation nest thermostat?

[maedacortez]

Hi Jcdenton,

Thanks for reaching out. I understand that you need help identifying where to connect the W/E wire.

I'm happy to assist you!

Please send me a picture of your wires. This will help me identify the correct connection.

I'll be awaiting your response.

Regards,

Manuel

[jcdenton]

Thank you Manuel. Now I am trying to figure out how to attach a picture. Once I do that, I will send what I have.

[jcdenton]

 

[jcdenton]

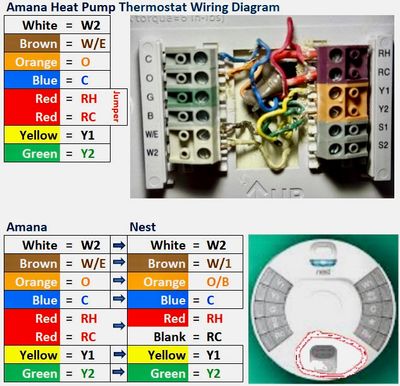

This is how google told me to wire it but when I do this, the heat does not work.

 

[maedacortez]

Hi jcdenton,

Thanks for your reply. I recommend connecting the W2 wire to the (*) terminal and changing the thermostat's orientation to (O). Please follow these steps:

1. On your thermostat, go to Settings.
2. Select Equipment.
3. Select Continue.
4. Select heat pump.
5. The Nest Thermostat defaults to an O setting for heat pumps.
6. If the B option is highlighted, select O.

Let me know if this helps!

Regards,

Manuel
