Compatibility Wiring

[CUTiger556]

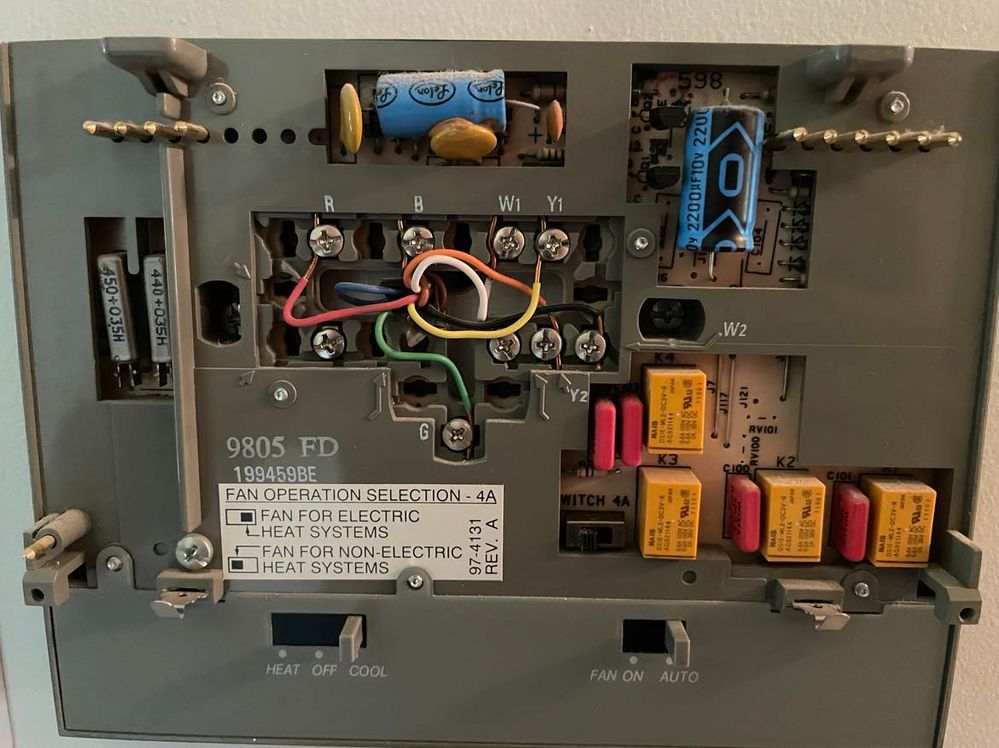

Will this system be compatible with Nest Thermostat?

[DaveLister]

Going to https://store.google.com/widget/compatibility/thermostat and entering the wires attached to your current thermostat, it's unknown. Go to https://nest.com/support/contact-us, select Chat or Phone, and a support agent can work with you to determine if you can use a Nest thermostat with your current system.

[Patrick_Caezza]

@CUTiger556

It is only compatible with the Nest Learning Thermostat, 3rd Gen.

Try this

Red - R to Rc

Blue - B to C

White - W to W1

Yellow - Y1 to Y1

Green - G to G

Orange - Y2 to Y2

Black - W2 to W2

[zoeuvre]

Hi CUTiger556,

Thanks for reaching out to us. I hope you already get the answer you're looking for based on what Patrick_Caezza and DaveLister has shared. Also, here's a helpful guide on how to install and set up a Nest Learning Thermostat 3rd generation.

Let us know if you have any other questions. We're happy to help.

Thanks for your help, @Patrick_Caezza and @DaveLister.
