Compatibility for the Nest Learning Thermostat

scyank66
Community Member

American Standard Heat Pump Model #:  4A6H5049E1000BB

American Standard Propane Furnace Model #: AUH2C100A9V4VBA

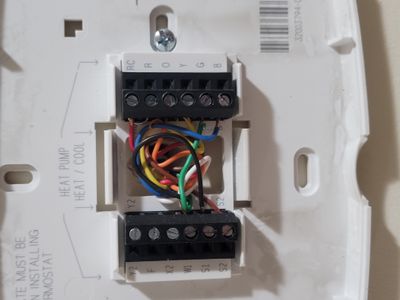

Pix below.  Is the Nest Learning stat compatible with my system?





3 REPLIES 3

Markjosephp
Community Specialist
Community Specialist

Hello scyank66,

Thanks for your interest in the Nest Learning Thermostat. I'd be happy to take a look into this for you.

It appears that your system is compatible with the Nest Thermostats. Wires labeled S1 or S2 can be indicator lights or sensor wires. The Nest thermostat does not need these wires. Install your Nest thermostat without these wires and the jumper wire.

Here's a wiring diagram for you to follow:

If there’s anything else I can help you with, please let me know.

Best regards,

Mark

Hey there,

I know it has been a while, but I wanted to ensure that everything is covered here.

@scyank66, How's your thermostat now? Still need help with the installation?

Best regards,

Mark

Hi scyank66,

I'm just checking in to make sure that you've seen my response. Please let us know if you have any additional questions or concerns before I close this in 24 hours.

Best regards,

Mark
