01-07-2023 10:10 AM

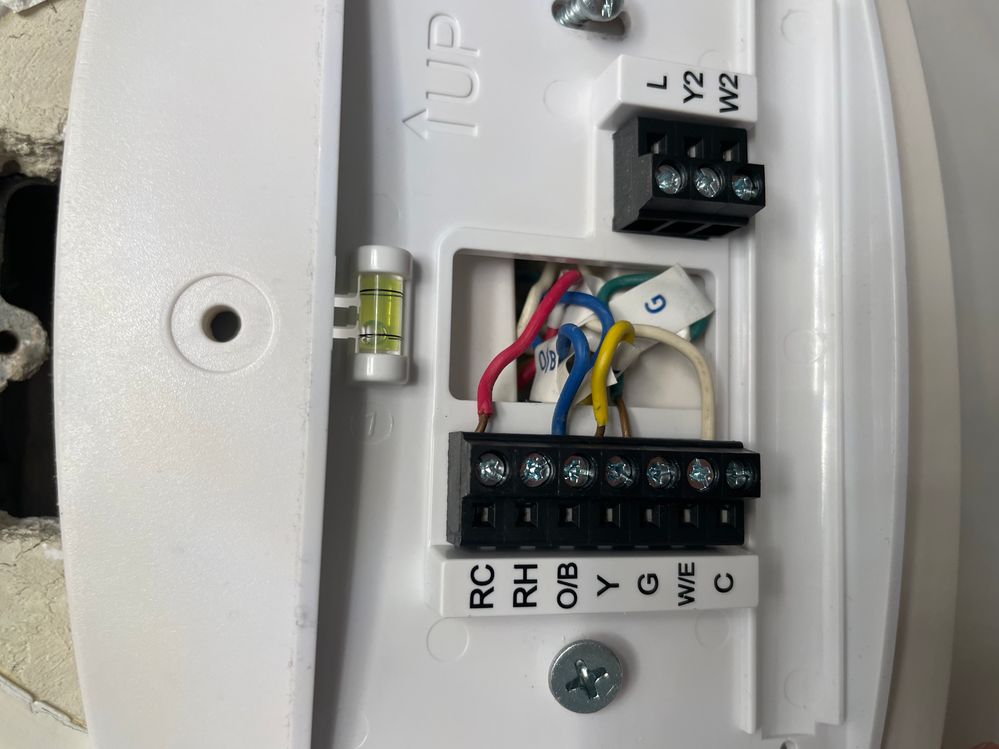

I would like to replace the an old thermostat with this wiring scheme with the nest e. I will need to add a common but where does the W/E wire on this diagram connect to on the nest e thermostat
Answered! Go to the Recommended Answer.
01-07-2023 02:45 PM
IzMic, you are most welcome. Do not forget to click that “Recommend This Answer” and add a Kudo.
01-07-2023 11:38 AM
Your system is a Heat Pump system. The E/W is your Auxiliary/Emergency heat. When you install the Nest, you enter the system as a Neat Pump, Forced Air, and the wires I use are R, Y, O/B, E, G.
Ken, The AC Cooling Wizard
01-07-2023 12:30 PM
Thank you!
