Nest thermostat

[mm702]

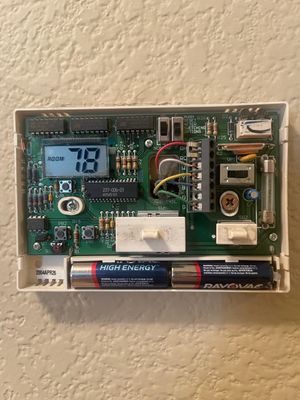

Sorry if the photo blurry, any help would be very appreciated.

[Markjosephp]

Hello mm702,

Thanks for reaching out to the Google Nest Community Forum. I'd be happy to take a look at this for you.

It appears that your thermostat's wiring is Nest-compatible. Here's your guide to wiring a Nest Thermostat:

• Red wire > R/Rc/Rh terminal
• White wire > W/W1 terminal
• Yellow wire > Y/Y1 terminal
• Green wire > G terminal
• Blue wire > C terminal

Let us know if you need more help.

Best,
Mark

[Jenelyn_O]

Hi there,

I hope you got the answer you're looking for. Please let us know if you still have questions or concerns, as we'll be willing to assist you further.

I appreciate your help, Mark.

Thanks,

Jenelyn
