Nest wire connections error 77.

Denis007
Community Member

Hello,



i connected the wire that my previous thermostat had to the Google nest and I’m getting a error 77 message. Asking me to connect the heater pump, require wire Y1 to be connected. However I do not have a heater pump. Only baseboard heater.

any suggestions?



Denis

15 REPLIES 15

Patrick_Caezza
Platinum Product Expert
Platinum Product Expert

Post a picture of the original thermostat's wiring and one of how you wired the Nest


To ensure that I see your reply, please tag me using @Patrick_Caezza

Spoiler

I can’t, I get a message telling me I do not have permission to upload images???



@Patrick_Caezza wrote:

Post a picture of the original thermostat's wiring and one of how you wired the Nest

Hi Patrick, any suggestions on how I can make the Nest work?

Denis007
Community Member

Was finally able to do it. Let me know what I can do.

Patrick_Caezza
Platinum Product Expert
Platinum Product Expert

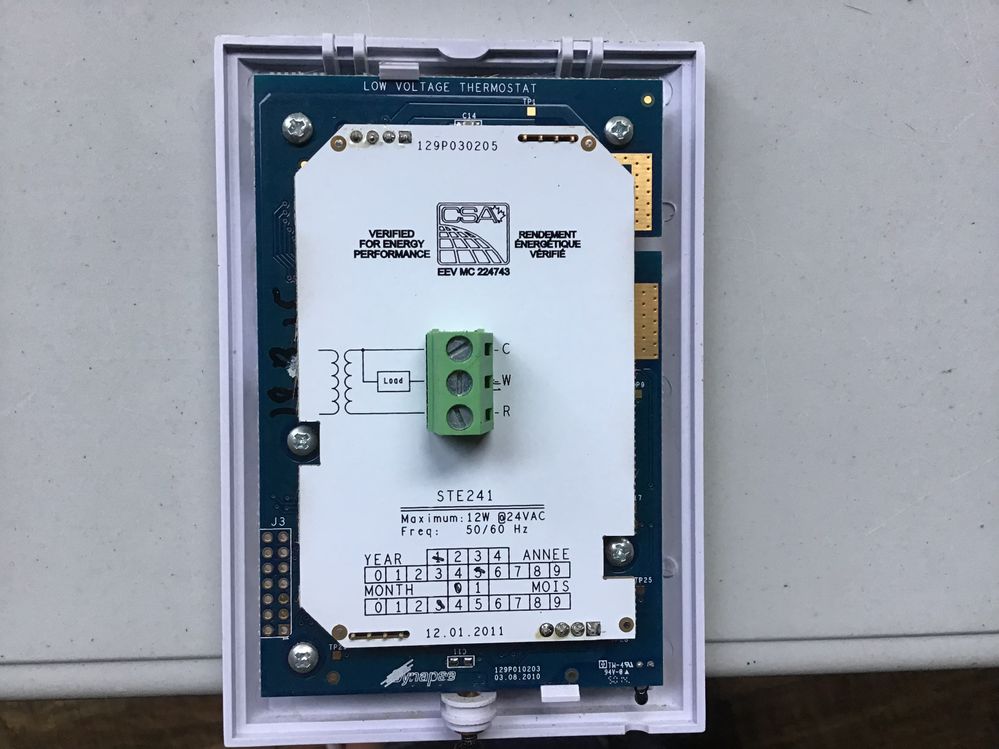

Looking at the original thermostat's wiring, I'm not sure it's compatible. What is the manufacturer and model number of that thermostat? Can you provide a better picture of the label?

What are you controlling? A/C, Furnace, Heat Pump, Boiler?

Your current wiring of the nest won't work.


To ensure that I see your reply, please tag me using @Patrick_Caezza

Thanks Patrick,

it only control baseboard heater. Nothing else.

ill be back at the location this weekend, I’ll send you a better picture then.

Denis

than

Hi Patrick,



I still cannot post a picture.

Denis


Hello Patrick,

Any idea on how I can make this Nest work?

Denis

MelbaDT
Community Specialist
Community Specialist

Hey Denis,



Sorry for the delay here and thanks for the photos.



Since you don't have a heat pump, there shouldn't be a wire on the OB terminal. Could you transfer the black wire to the C terminal instead as on the old thermostat labels, one is labeled as C.



Keep us posted.



Also, thanks for your help here, Patrick.



Best,

Melba

Denis007
Community Member

Good morning Patrick.
looks like it works. Fantastic. Thank you very much sir really appreciated your help.
so I guess in the future for the other nest that I will install (baseboard), I have to follow the same connections I assume?
Denis

Denis007
Community Member

Thanks Melba for your help.

denis

MelbaDT
Community Specialist
Community Specialist

Hey Denis,



No biggie and we're glad to hear you've got it working as it should. And to answer your question above, yes, you just need to wire the other Nest thermostat as what you've done here.



Feel free to reach out again should you have further questions.



Cheers,

Melba

MelbaDT
Community Specialist
Community Specialist

Hi,



We haven't heard from you in a while so we'll be locking this thread if there is no update within the day. If you have any new issues, updates or just a discussion topic, feel free to start a new thread in the Community.


Best,

Melba
