Nest wiring

[Ces3200]

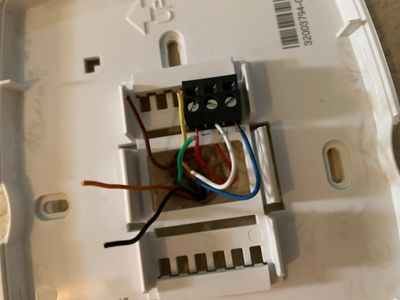

Is this setup compatible with Nest E? And how would wiring work? Do I really have turn off breaker ?

[Ces3200]

 

[EdwardT]

Hi folks,

@Zns and Patrick_Caezza, thanks for the help!

@Ces3200, how's it going with your Nest Thermostat? Still need our help?

Thanks,

Edward

[Ces3200]

Question was answered, getting it rewired , thanks for your help

[EdwardT]

Hi Ces3200,

Thanks for the update. Let us know the results once you've got it wired.

Thanks,

Edward

[Zns]

Try the Nest Thermostat Compatibility Checker.

https://store.google.com/gb/widget/compatibility/thermostat?hl=en-GB

[Patrick_Caezza · Accepted solution]

Your current thermostat uses a proprietary interface that none of the Nest thermostats support.

Sometimes you can change the interface at the furnace/air handler to the standard configuration as you do have all of the needed wires. Just look at the terminal block on the control board in the furnace/air handler

[Ces3200]

Thanks , you helped out

[EdwardT]

Hi Ces3200,

Thanks for the update. Is it working fine now? Let us know if you have questions and we'd be glad to assist.

Thanks,

Edward

[EdwardT]

Hi Ces3200,

Please let us know if you have any other questions or concerns as I will be locking this in 24 hours.

Thanks,

Edward
