New Nest Wiring Assistance

[lasalle]

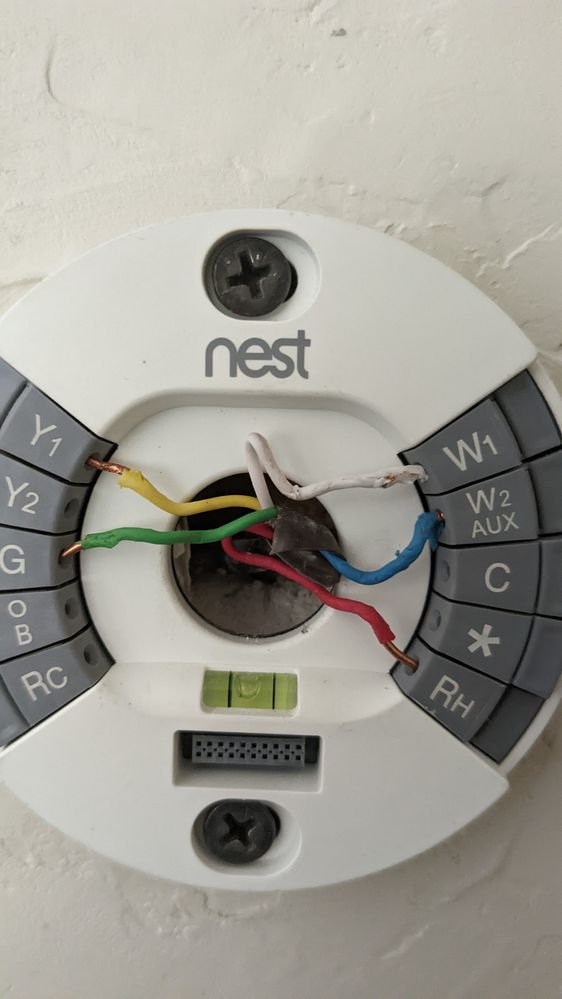

New Nest Thermostat wiring help needed. Pic of new nest I plan on installing and pic of present nest wiring which has provided get service and continues to do so. I assume the blue wire is the control wire? Color code the wires and place "blue wire" in C?

[EdwardT]

Hi lasalle,

Thanks for reaching out. I would suggest checking the control board of your HVAC system to make sure that your blue wire is a C wire.

Thanks,

Edward

[EdwardT]

Hi lasalle,

It's me again. I wanted to check back in to see if you have other questions and concerns. Feel free to let me know if you do.

Thanks,

Edward

[lasalle]

Thanks for following up. I have a 2 stage Bryant furnace f/g96vtn. I was looking for a video that would explain where the control panel is located (bottom panel?) and steps to turn off the furnace, open the panel, check where the blue wire is connected and get it restarted easily. There is a switch in the utility closet to turn the power off to the furnace. Regards, John Lynch

[EdwardT]

Hi lasalle,

Thanks for the response. If you have a 2 stage heating, then it's possible that your blue wire is for the 2nd stage. Let us know once you've checked the control board of your HVAC so we can investigate further.

Thanks,

Edward

[aatienza]

Hey there,

I just wanted to follow up to see if you still need our help. Please let us know as we would be happy to answer any questions you may have.

I appreciate the help, Edward.

Thanks,

Archie

[aatienza]

Hi there,

Just checking in to make sure that you've seen our responses. Please let me know if you have other questions or concerns as I will be locking this in 24 hours if I won't hear back from you again. Feel free to start a new thread and we'll be happy to help.

Thanks,

Archie
