Thermostat Compatibility

Community Member

I’m thinking of purchasing a Nest Thermostat and working on determining if my system is compatible. I’m unsure if my system meets the wiring requirements for a Nest Thermostat. Would anyone be able to assist?

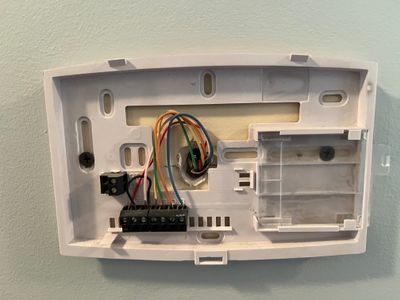

The labels on the wires coming into my thermostat are the following:

R, W2/X2, W1, Y, G, O, B




Silver Product Expert
Silver Product Expert

Hi @Austinhuff - That looks EXACTLY like the same setup I had before I switched over to the Nest Thermostat.  The only thing that I needed to get was the Nest Power Connector to hook up down in the heater control panel in my basement. You can find that here:

I suggest trying to install it without the Power connector first - the home app will let you know if you need a connector during the initial setup.

Hope this helps!

Platinum Product Expert
Platinum Product Expert

Yes, it is compatible with any of the Nest Thermostats

Try this wiring with the Google Nest Thermostat

Red - R to R

White - W1 to W (jumper to W2/X2 not needed)

Yellow - Y to Y

Green - G to G

Orange - O to */OB

Blue - B to C


When asked by the Home app to select the wires being used, I suggest these.

R, W/W1, Y/Y1, G/G1, O, and C

Screenshot_20220424-083451_Home.jpg  Example only

To ensure that I see your reply, please tag me using @Patrick_Caezza

Community Specialist
Community Specialist

Hi folks,


@MrVacca and @Patrick_Caezza, thanks for the help!


@Austinhuff, how's it going with your Nest Thermostat? Still need our help?




Community Specialist
Community Specialist

Hey there,


I wanted to check in, and let you know that I will be locking the thread in 24 hours.


Best regards,
