09-30-2022 09:47 AM

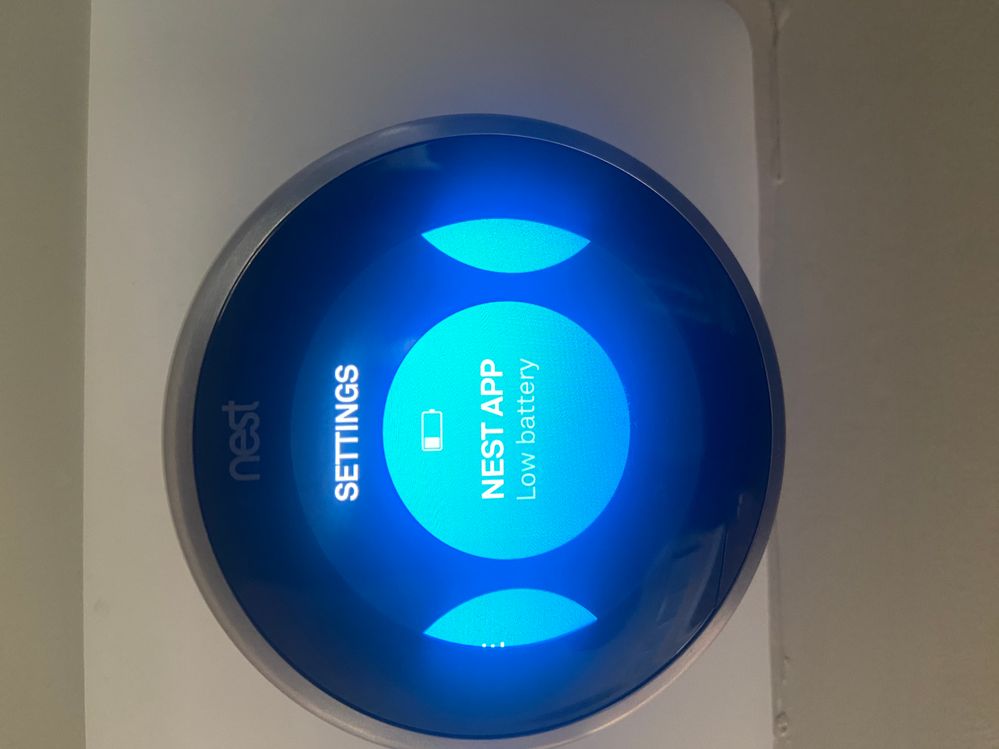

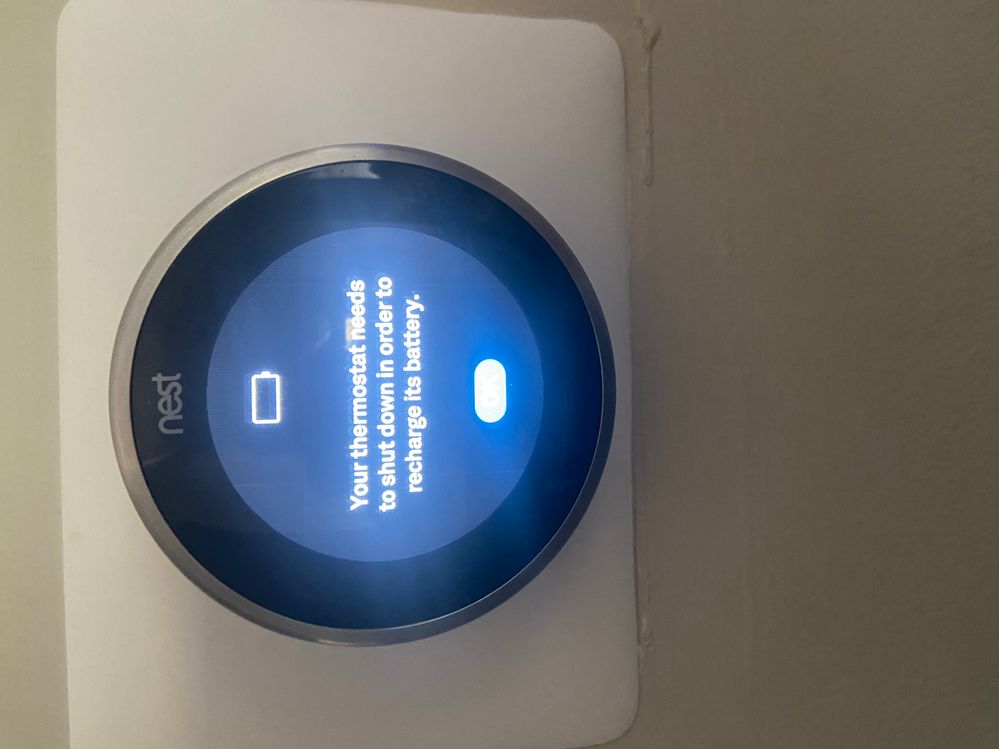

I had nest learning thermostat for couple of years but it's shutting down frequently with battery issues.
09-30-2022 10:17 AM - edited 09-30-2022 10:19 AM

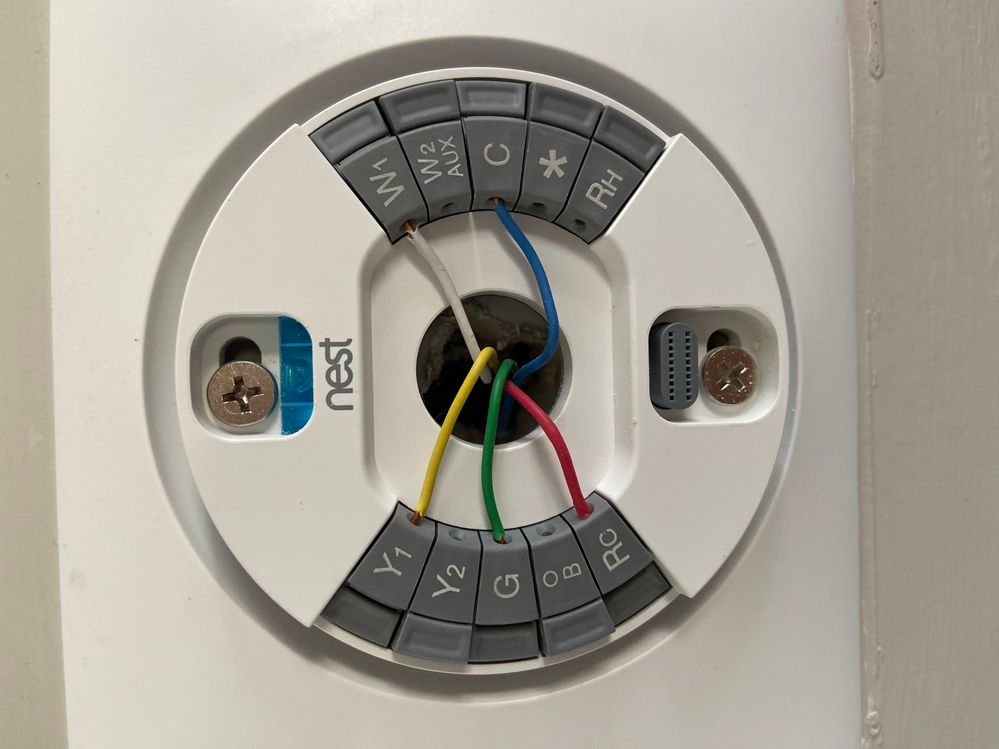

This is indeed an odd one. The nest thermostat has a 3.5 V rechargeable battery and it looks like your battery is at 90% charged. Additionally the charging circuit excepts the voltage in from the HVAC equipment cleans up that power and pushes it up to approximately 30 V to charge the battery and in your case that part is normal as well and the current along the common line is approximate 200 mA and yours is there as well. This would like to make me feel like you have a defective battery in your thermostat that is no longer taking a charge. Tell me, how old is that third generation learning thermostat you have?
09-30-2022 12:19 PM
it's about 1.5 years old.
09-30-2022 12:21 PM
Well, that is indeed puzzling. Has anyone service your HVAC system recently?
09-30-2022 08:04 PM
Yes. My HVAC is only 1 year old.
10-04-2022 09:25 AM
Hi folks,
@CoolingWizard, thanks for the help!
@kspraneeth, thanks for reaching out and I'm sorry to hear that you're having an issue with your Nest Thermostat. To isolate the issue, could you try charging your Nest Thermostat's display for at least an hour using a USB cable and check if the battery is still going to drain?
Thanks,
Edward
10-07-2022 09:34 AM
Hi kspraneeth,
It's me again. I wanted to check back in to see if you have other questions and concerns. Feel free to let me know if you do.
Thanks,
Edward
10-11-2022 10:22 AM
Hi kspraneeth,
I'm just checking in to make sure that you've seen our response. Please let us know if you have any other questions or concerns as I will be locking this in 24 hours.
Thanks,
Edward
