Anyone Know what system i have, if it’s compatible with Nest?

Sesa
Community Member

I have 5 wires with my thermostat : Red, Yellow, Black, Brown and White. There is not label for checking the compatibility.

do you have someone know this system?

WireWireThermostatThermostat

8 REPLIES 8

Houptee
Silver Product Expert
Silver Product Expert

What brand and model is the thermostat and what kind of heating system do you have do you know the brand of furnace? Is there a control box near the furnace that the other end of the wires are connected to?


Houptee -- NJ Master HVAC Licensed Contractor

Sesa
Community Member

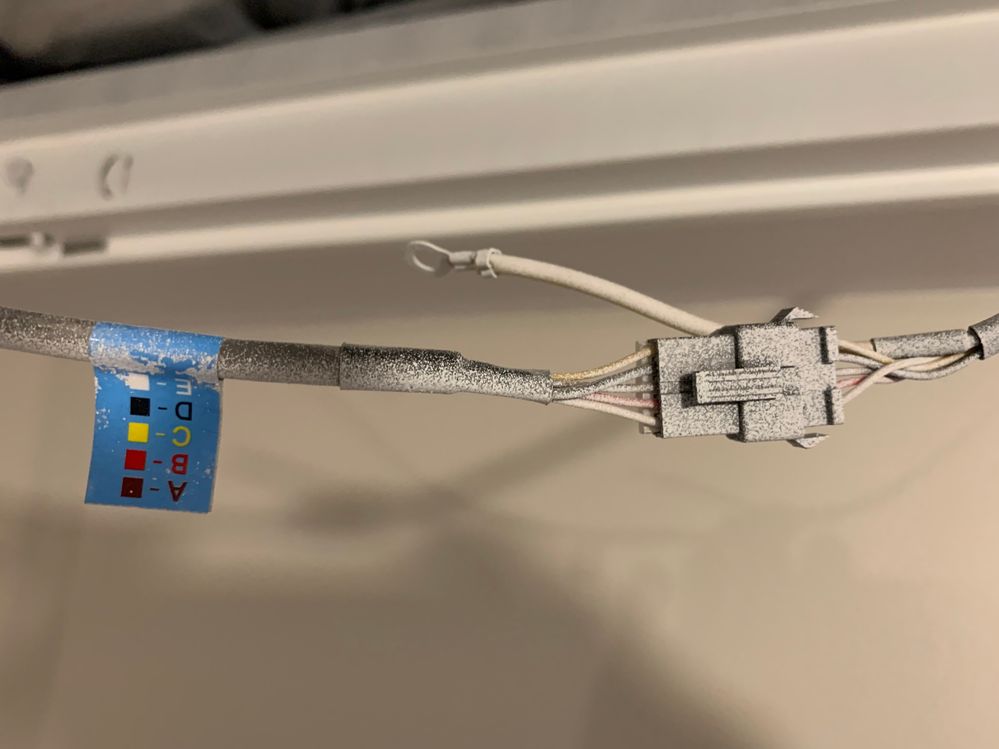

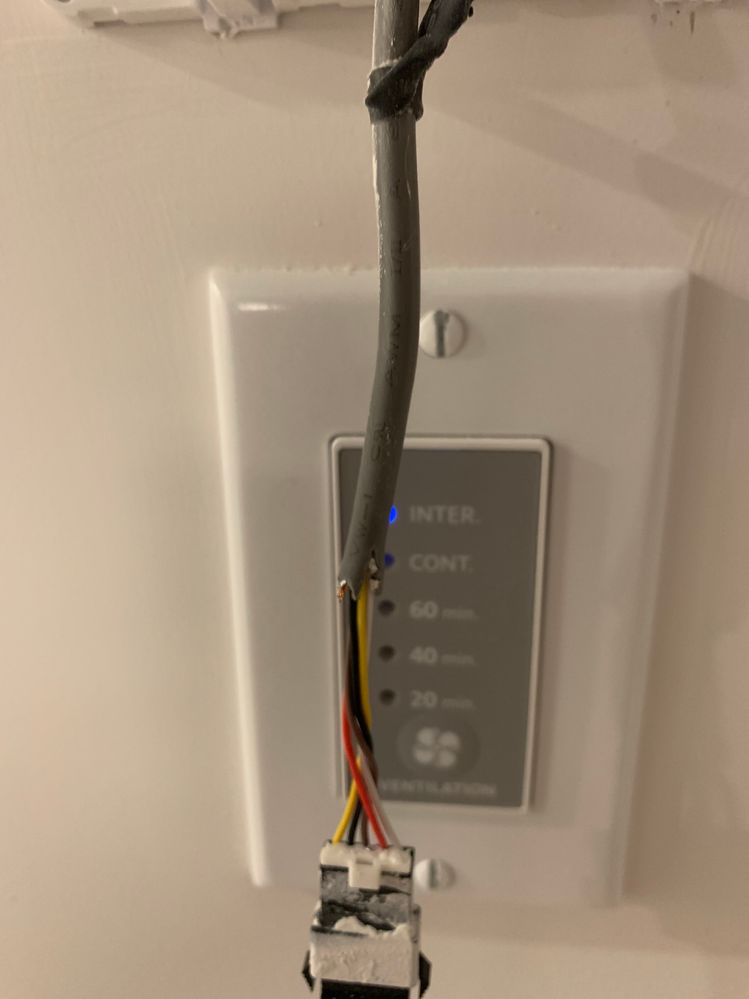

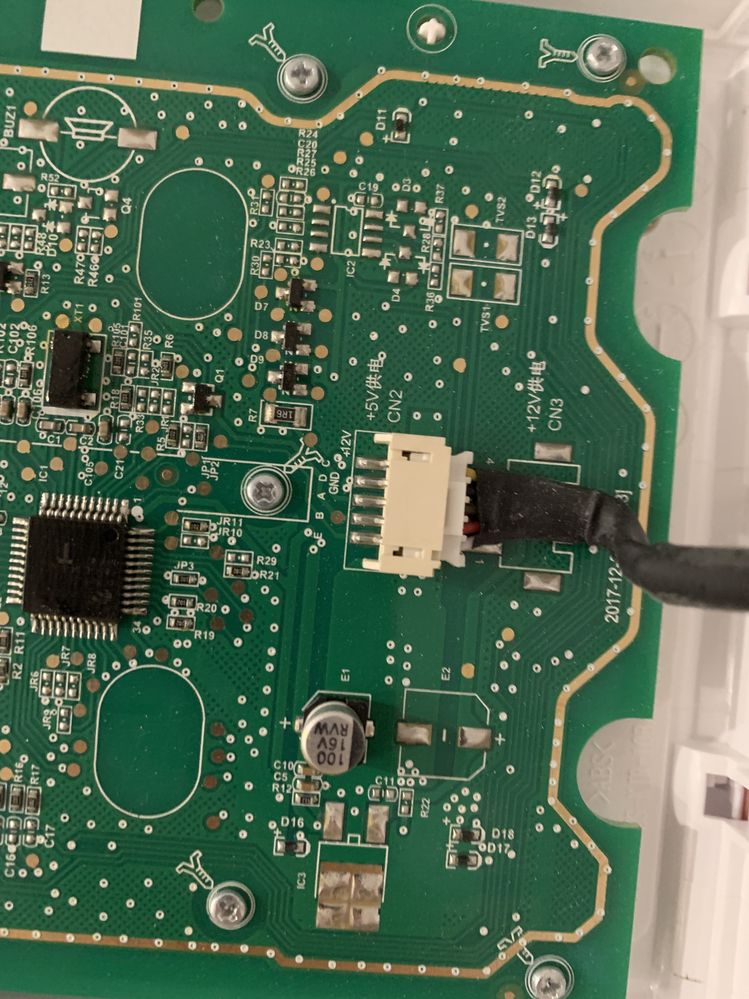

The brand our air conditioner system is « Goodman », I find the end of the wire where I saw the same label: ABCDE

37720CDD-8ACB-4EFA-8CE1-127CD0D94809.jpegAEED0806-B6DF-4BE0-8180-F0A155D2397F.jpegF62B8B43-DD52-494B-9040-A84F275F6978.jpeg

Houptee
Silver Product Expert
Silver Product Expert

Is this a mini split wall unit or a regular furnace with ductwork?

The thermostat looks like it's designed for a mini split system.

If you follow the wires leaving the white box in the ceiling to the Goodman unit see if they connect to terminals labeled R Y W G C etc.


Houptee -- NJ Master HVAC Licensed Contractor

Sesa
Community Member

Thank for your quick reply.

yes, it’s a mini split system.

i will check the box if there is the others label.

thanks again

Houptee
Silver Product Expert
Silver Product Expert

Usually you have to use the proprietary thermostat with mini splits. You can try contacting Goodman to find out if they have a adapter or something to use a nest with your system. They will probably need the model number of the system from the decal on it.


Houptee -- NJ Master HVAC Licensed Contractor

Jhonleanmel
Community Specialist
Community Specialist

Hey folks,

We appreciate your help here, @Houptee.
@Sesa, I wanted to follow up and see if you are still in need of any help. Please let me know if you are still having any concerns or questions from here, as I would be happy to take a closer look and assist you further.

Thanks,
Mel

Hey there,

Checking back in should you still have some questions here. Let us know by replying to this thread.

Best,
Mel

Hi everyone,

Just one quick final check in here since activity has slowed down. We'll be locking the thread in the next 24 hours, but if you still need help, I would be happy to keep it open. If there's more we can do, just let me know.

Thanks,
Mel
