Connecting Heatlink with Drayton wireless thermostat and Drayton SM1 timer

[marianlungu]

Hi,

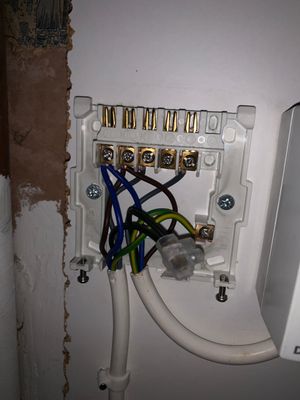

I'm trying to connect the Heatlink to my current boiler thermostat and timer (photos below). The thermostat is a wireless Drayton WL2 and the timer is a Drayton SM1. The issue I'm having is identifying the NO wire as it comes from the Timer. So, basically the C wire is 1 on the panel and NO is 3, but 3 is coming from the timer. Any advice would be amazing.

Thanks

 

 

[AnaM]

Hi @marianlungu,

I'm sorry to hear you're having difficulties with the installation. We are trained on the part concerning the thermostat's wiring, and we can guide through that, but identifying the wires that you have is difficult for us, especially remotely. The best thing to do is contact an installer to help you figure out which wire is which. Here's also the installation video in case you missed it: https://bit.ly/3pjZvCA. Let me know if you need any further assistance.

[AlexD]

Hi, I wanted to check in.

Do you need any further assistance? If so, make sure to let me know.

[AlexD]

Hey there, I haven't heard from you in a while so I'll be locking this thread. If you have any new issues, updates or just a discussion topic, feel free to start a new thread in the community.

Thanks, AlexD.
