Is my l

[Jgoodman]

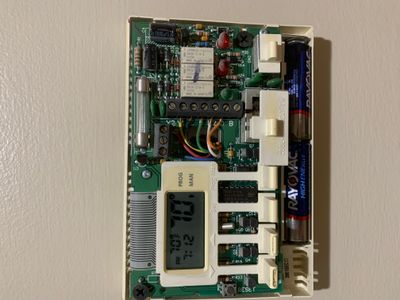

Don’t know if my wiring is compatible

 

[Patrick_Caezza]

Your current thermostat is only compatible with the Nest Learning Thermostat, 3rd Gen

This is how I suggest wiring it.

Blue - C to C

Red - R to Rc

Yellow - Y1 to Y1

Black - E to * (set as Emergency heat)

Green - G to G

White - W2 to W2/AUX (set as AUX heat)

Orange - O to OB

[EdwardT]

Hi folks,

@Patrick, thanks for the help!

@Jgoodman, how's it going? Were you able to wire your Nest Thermostat with the wiring that Patrick suggested?

Thanks,

Edward

[EdwardT]

Hi Jgoodman,

It's me again. I wanted to check back in to see if you have other questions and concerns. Feel free to let me know if you do.

Thanks,

Edward

[EdwardT]

Hi Jgoodman,

Just checking in to make sure that you've seen our response. Please let us know if you have any other questions or concerns as I will be locking this in 24 hours.

Thanks,

Edward
