Nest 3rd gen to Trane heat pump TEM4A0C42S41SAA

[MotorBikeMike]

My original thermostat has 7 wires connected as shown in the first photo.

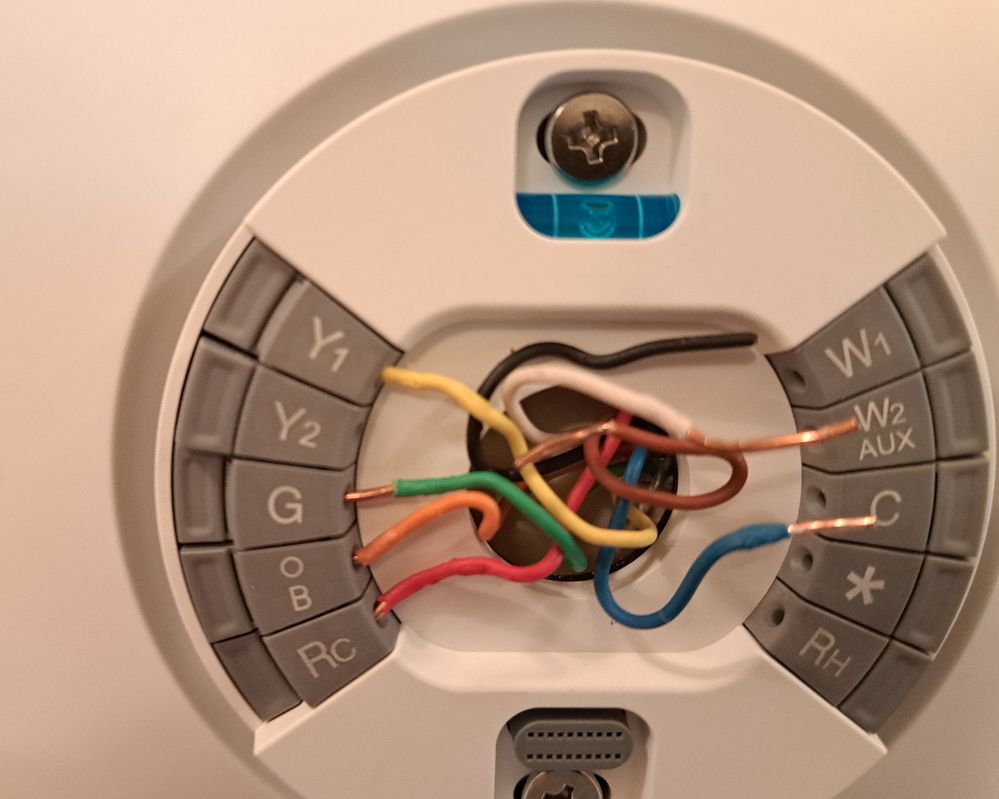

I've also included a photo of the nest unit. On the left side of the unit I have the wires attached on the right side I think the White wire should go to W1 and the Blue to C - I don't know where to connect the brown wire. (The black was not attached to anything and also was not stripped back.

A guess on my part is the Brown wire is not needed but that is a Wild Guess. If you know the correct answer I would be appreciate the help.

Thanks,

Mike

[MotorBikeMike]

I meant to say the White wire should go to W1.

Thanks,

[Patrick_Caezza]

@MotorBikeMike

Yellow - Y to Y1

Green - G to G

Orange - O/B to OB

Red - R to Rc

White - W2 to W2 (aet as AUX heat)

Blue - C to C

Brown - E to * (set as emergency heat)

[MotorBikeMike]

Thank you.

1. Is W2 set as aux heat by default in nest or do I need to make some adjustment.

2. is * set as emergency heat by default in next or is there an adjustment that I need to make.

Thank you.

[MotorBikeMike]

@Patrick_Caezza

Thank you.

1. Is W2 set as aux heat by default on the nest thermostat or do I need to make adjustment in the setup software.

2. is * set as emergency heat by default in next or is there an adjustment that I need to make.

Thank you.

[Patrick_Caezza · Accepted solution]

@MotorBikeMike

As you are setting it up, it will ask you to verify those terminals.

[Jenelyn_O]

Hi there,

Thanks for posting in the Google Nest Community forum. I hope you get the answer you're looking for. Please let us know if you still need help, as I'll be willing to assist you further.

I appreciate your help, @Patrick_Caezza.

Best,

Jenelyn

[MotorBikeMike]

The Nest unit seems to be working fine thanks to

 @Patrick_Caezza.

Cheers,

Mike
