Nest N260 message still appearing after installing Nest power connector

[SteveSales]

Hello, I've installed Nest and power connector as I have two wire heating-only thermostat system.  Getting N260 warnings and emails about nest getting insufficient power.    Reset the thermostat and ran power test with these results:

Vin:26.6 V

lin: 42(w)

PS: w-42

Looks ok, but still getting the 260 error and it has me worried its not working correctly and will drain battery.

[Patrick_Caezza]

@SteveSales

How did you wire the Nest Power Connector into the system?

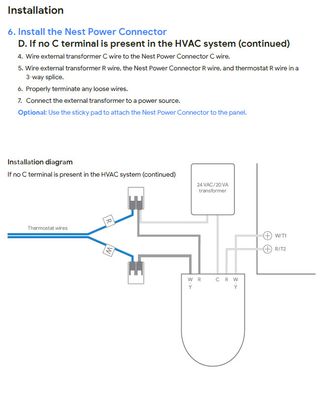

Are you using an external 24vac transformer? If you are, did you wire it like this?

[SteveSales]

HI Patrick,  no I'm not using a transformer.  I'm wired just like the "heat only" wiring diagram in the app where there is a COM terminal in my thermostat distribution box next to my boiler.  I can send you a picture if you can tell me how to upload it.

[SteveSales]

Hi Patrick any other ideas?
