01-13-2023 04:25 AM

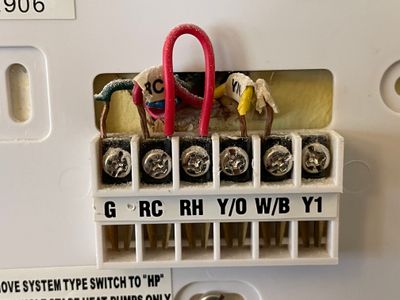

Trying to figure out if this is compatible with the nest thermostat. Here is my current wiring layout. I know the jumper will go away.
please advise, thanks in advance
01-13-2023 06:27 AM
Yes it will work.
Put Red to R
G to G, Yellow to Y, White to W
If you have a spare wire in the cable you should connect it as a C wire but you would need to also go to the furnace and take cover off and find the C screw and connect it there also.
The Nest might work without a C wire but it's always best to connect it if possible.
01-13-2023 12:59 PM
Thank you! I will check that out this weekend.
01-16-2023 02:49 PM
Hi folks,
@Houptee, thanks for the help!
@Onebad750, how's it going with your Nest Thermostat? Still need our help?
Thanks,
Edward
01-19-2023 02:57 PM
Hey there,
I wanted to check in and see if you are still in need of any help. Please let me know, as I would be happy to assist, and answer any questions you may have.
Best regards,
Jake
01-20-2023 09:31 AM
Hey there,
I wanted to check in, and let you know that I will be locking the thread in 24 hours.
Best regards,
Jake
