Thermostat wiring compatibility for Nest thermostat

[Trabeated]

Hi All. Just wondering if anyone can confirm if the Nest is compatible with my heating system.

have a red wire connected to the RH1 slot, a white wire connected to the W/B slot and a red jumper connected to RH and RC.

the compatibility chart does not include the RH1 slot.

thanks in advance.

[CoolingWizard]

Trabeted,

can you take a picture of the thermostat and its backplate showing the wire connections?

Ken, The AC Cooling Wizard

[Trabeated]

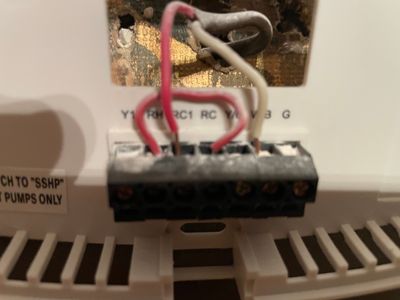

Here is a photo of the backplate.

 

[Trabeated]

Looks like I can’t add another image. The thermostat is made by indiglo

[Markjosephp]

Hi all,

I wanted to stop by and see how I could help.

Thanks for assisting, Ken.

@Trabeated, Nest Thermostats don’t use jumper wires, but if your current thermostat has a jumper wire, your system may still be Nest compatible. Follow the wiring diagram from your thermostat, with the white wire connected to the W terminal and the red wire connected to the Rc/R terminal on Nest Thermostats.

Feel free to let us know if you have more questions in mind.

Best regards,

Mark

[Jake]

Hey there,

I wanted to check in and see if you managed to see Mark's post. Please let me know if you have any questions from here. I would be happy to assist, and make sure you are good to go.

Best regards,
Jake
