Wiring verification check

[Livio]

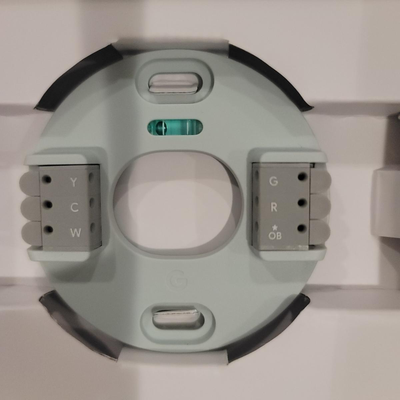

Hello community, I'm helping a friend install the nest product, I did the compatibility check on the Nest.com/work website, but got a "need more info at the end" , I posted both the current thermostat wiring and the Nest that was purchased, can I get some assistance if this is the right product they purchased and can it be installed.

Thanks for the assistance.

[Anonymous · Accepted solution]

I'm seeing Y2, W2, G, W, B, Y, R. Is this where the wires were connected from the old/current thermostat? I'm trying to confirm if I got it correctly. The nest thermostat you have now is not compatible with the wiring set up of your old/current thermostat set up. I'd highly suggest buying the Nest Learning Thermostat because it has 10 terminals. You have the 1st stage and 2nd stage for both cooling and heating if I'm not mistaken.

[Livio]

Eveluna,

Yes the pic is the current thermostat that is in place, you are correct on the wiring.

So just to confirm the Nest to get is the Nest Learning, 10 wire configuration?

[Anonymous]

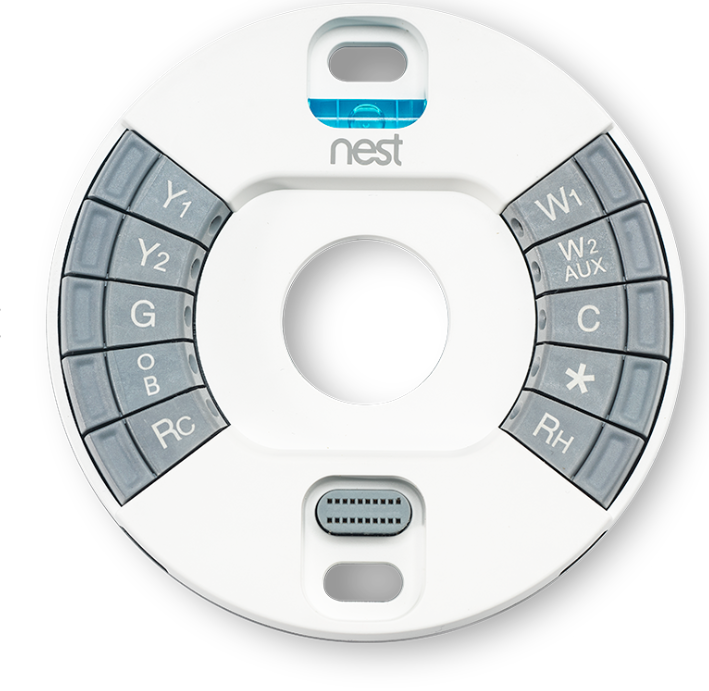

Yes, that's right. The Nest Learning ThermostatNest Learning Thermostat 3rd Gen base plate 3rd gen has these terminals:

[Livio]

Ok, SO just to be sure again , excuse my ignorance on this.

Old thermostat---------------Nest

Y2-----------------------------------Y2

W2----------------------------------W2 Aux

G------------------------------------G

W------------------------------------W1

B-------------------------------------OB

Y--------------------------------------Y1

R--------------------------------------RC or RH ?

[Anonymous]

You can choose either Rc or Rh.

[Livio]

Thanks again....

[Anonymous]

No worries. Let us know if you need more help. 🙂

[Jeran]

Thank you so much for helping out on this thread, eveluna!

Hey there Livio,

I'm just checking up on this thread, I'm glad to see that eveluna was able to assist you! In that case, do you have any more questions or need any additional help? If not, I'll go ahead and lock the thread in 24 hours.

Best regards,
Jeran
